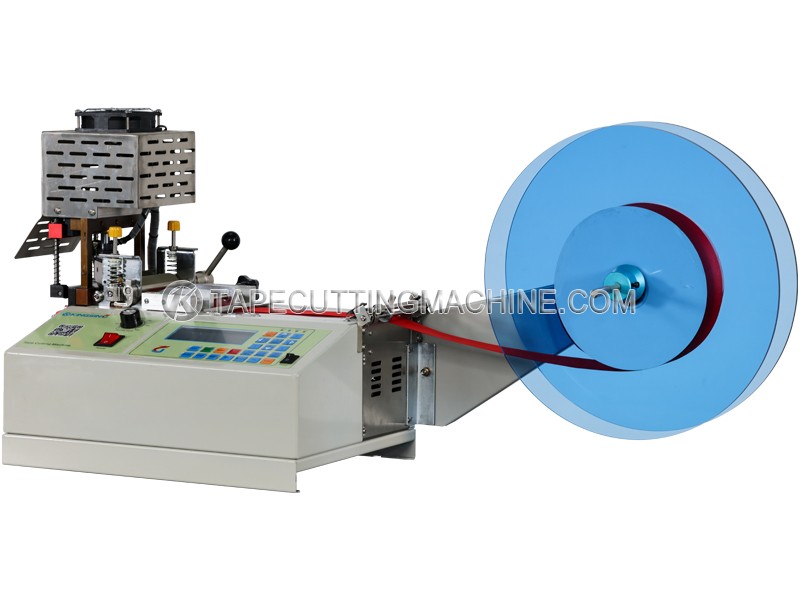

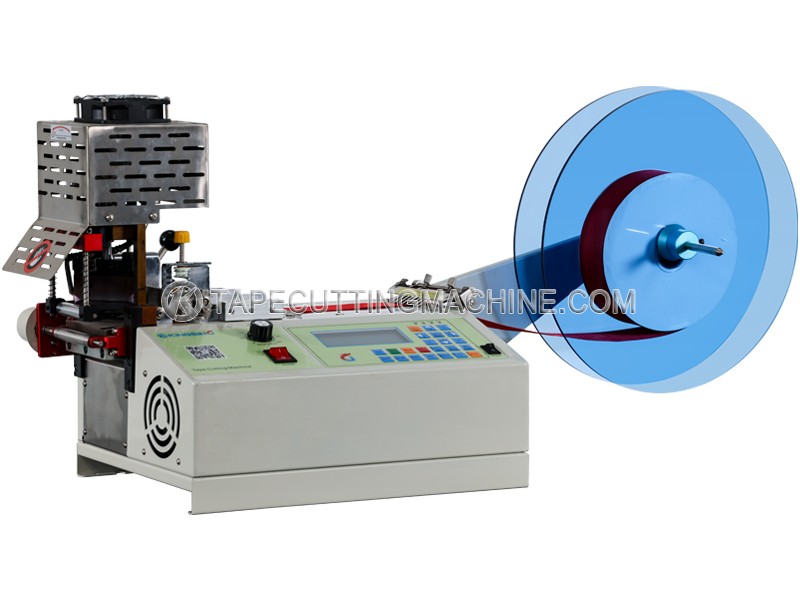

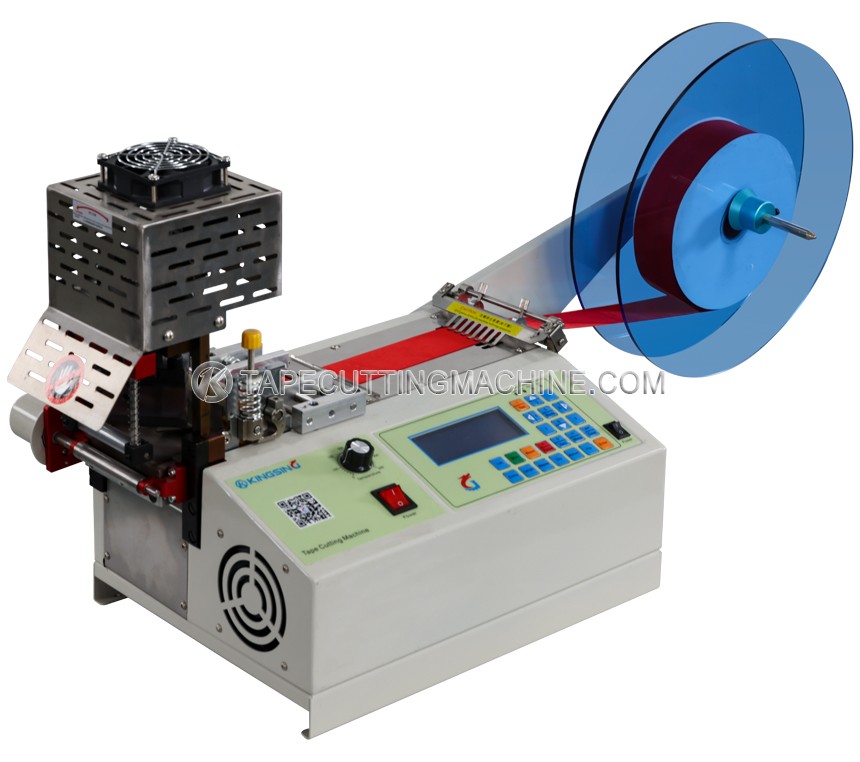

Rotary Angle Hot Blade Tape Cutting Machine

  • Model:KS-120DM
  • Blade Type:Hot Knife
  • Max. Width:45~70mm
  • Net. Weight:
  • Dimension:

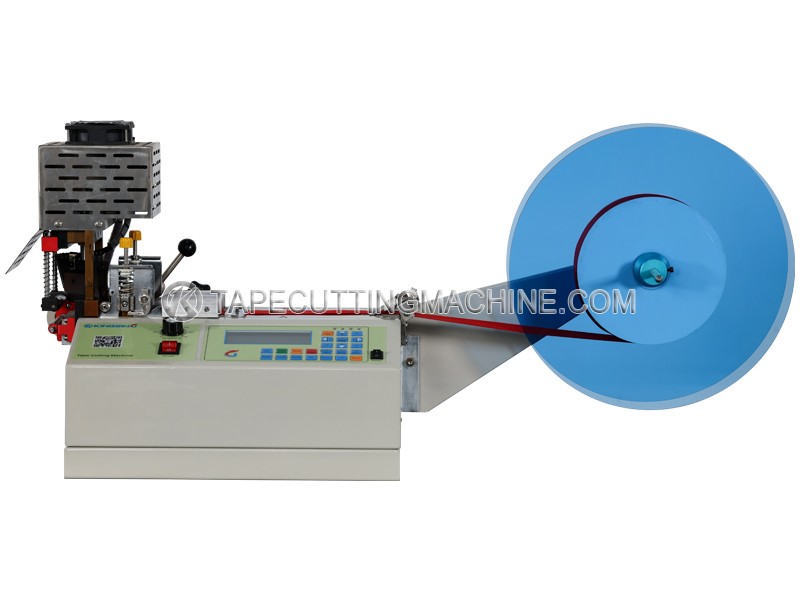

This is a multi-angle hot blade tape cutting machine, the cutter can automatically rotate a certain angle, so it can cut special shapes such as flat quadrilateral or trapezoid, and the rotation angle can be freely set in the program.

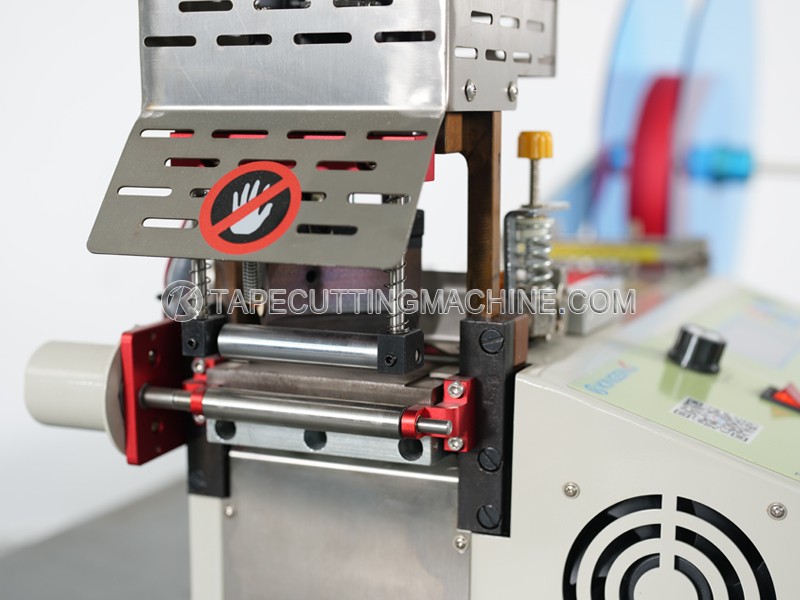

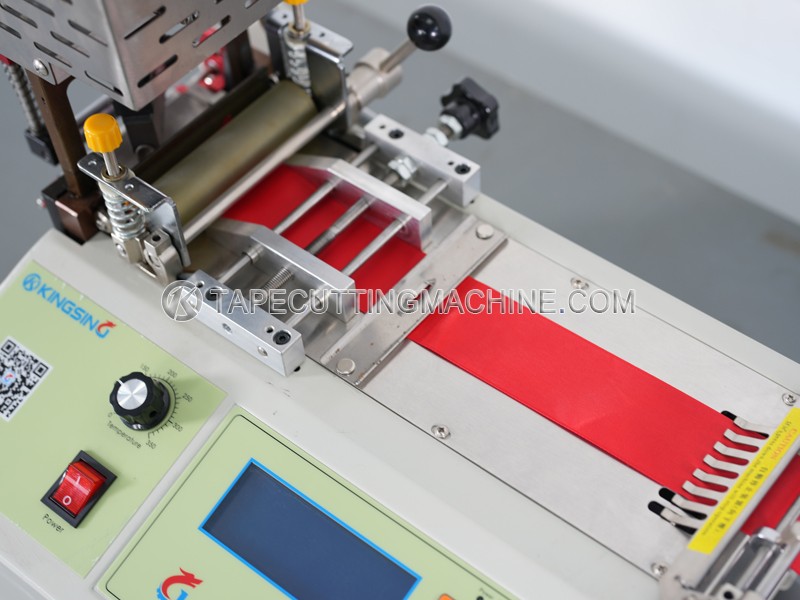

This machine adopts the method of hot melting to cut the tape, which can automatically seal the edges while cutting to prevent the incision from spinning. Its discharge port has an auxiliary pulling mechanism, which can effectively prevent the tape from sticking to the knife edge.

When you cut tape straightly, the maximum available width of the strap is 70mm, and when using the blade rotatary function, the maximum available width of the tape is about 45mm. Assuming the angle of rotation is α, then the maximum available width is 70*cos(α).

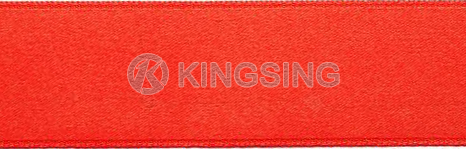

Straight CutKINGSING

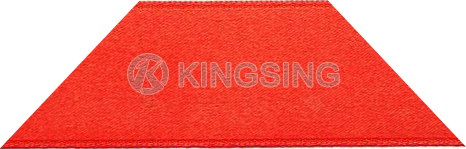

TrapezoidKINGSING
Flat QuadrilateralKINGSING

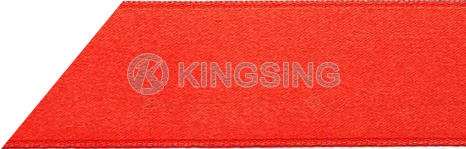

One Side BeveledKINGSING


Download: (1)

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
