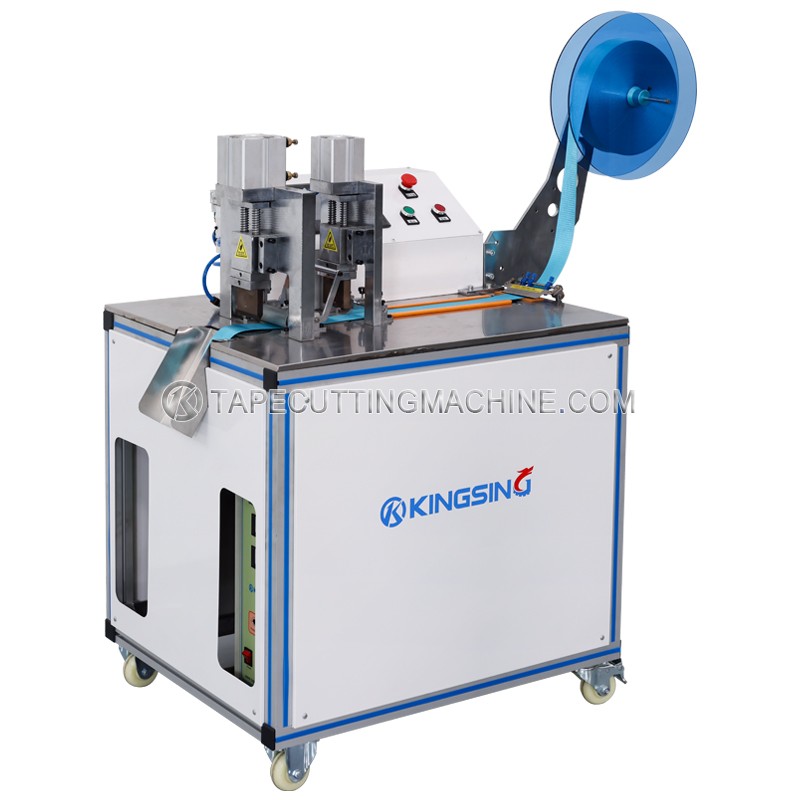

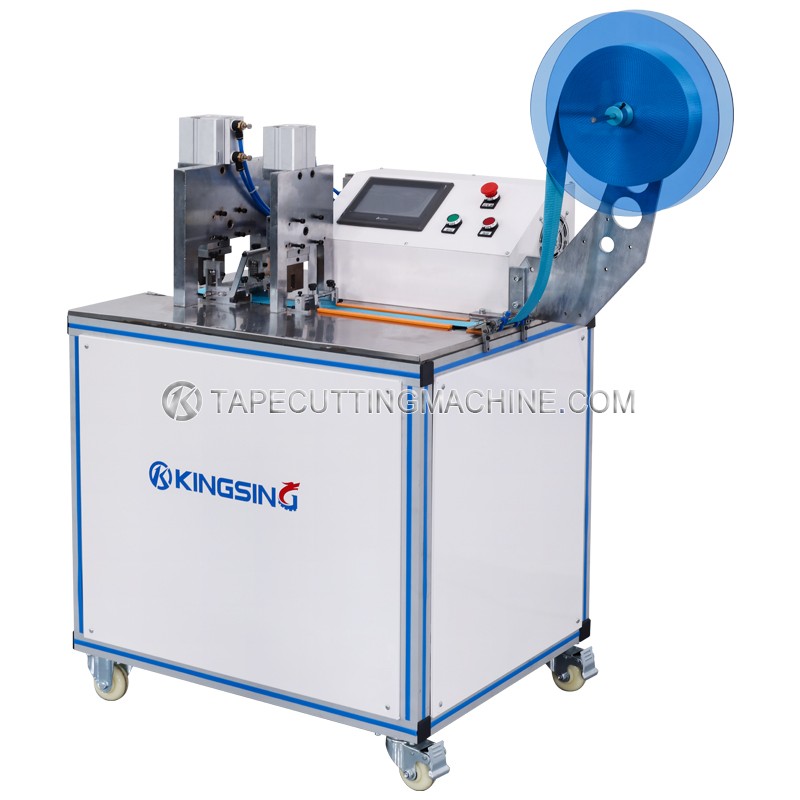

Ultrasonic Tape Cutting and Hole Punching Machine

  • Model:KS-U100P
  • Blade Type:Ultrasonic
  • Max. Width:
  • Net. Weight:
  • Dimension:
  • Robust & Reliable: The machine is designed for durability and dependability in various industrial applications.

  • Excellent Price/Performance Ratio: Offers great value for money with competitive pricing and superior performance.

  • Simple Operation: Users can start operating the machine quickly without needing any prior training.

  • Computer-Programmed Length Adjustment: Allows for precise control and adjustment of length data through computerized settings.

  • Efficiency Improvement: Enhances productivity, improves product quality, and reduces labor costs.

  • Material-Deficient Stop Function: Automatically halts operation when materials are insufficient, preventing wastage.

  • Adjustable Feeding Roller Pressure: Customizable pressure settings ensure optimal feeding effects.

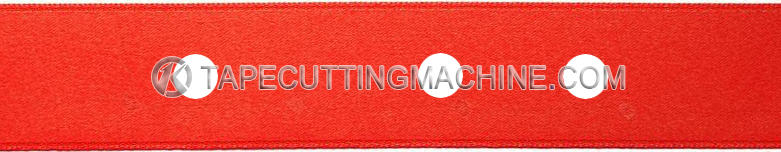

  • Integrated Tape Cutting & Hole Punching: This multi-functional machine can perform hole punching, tape cutting, continuous hole punching, tape cutting, and optional coiling.

  • Ultrasonic Cutting & Punching Method: Delivers smooth incisions without rough edges or loose selvedges.

  • PLC and HMI Control System: Equipped with advanced control technology, allowing easy and fast configuration of cutting and punching parameters via a user-friendly interface.

Download: (1)

Cutting Width: 1~70mm

Cutting Speed: 100 pcs/min

Ultrasonic Frequency: 15KHZ&18KHZ

Power Supply: AC220V~240V/50~60Hz

Power Rating: 4.5KW

Net Weight: 120KG

Dimensions(L*W*H): 850*650*1400mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
