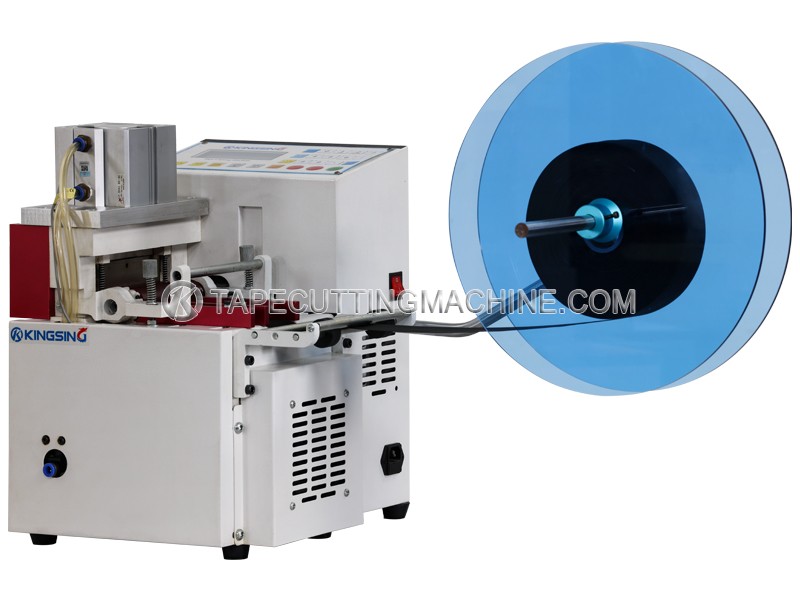

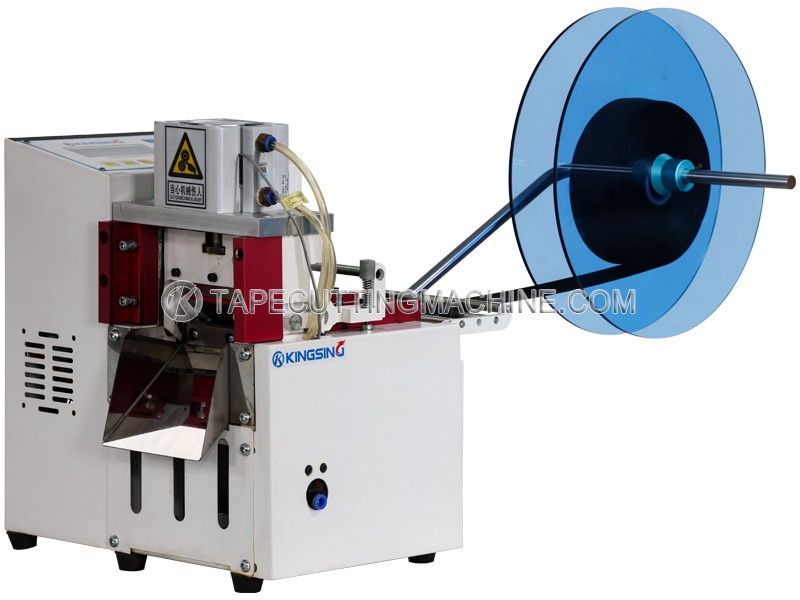

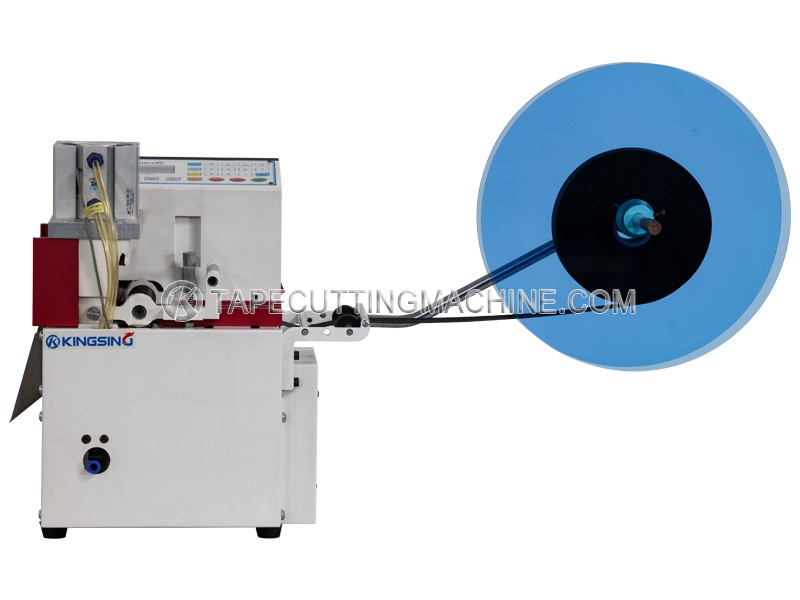

Heavy-duty Cold Blade Tape Cutting Machine

  • Model:KS-B100CQ
  • Blade Type:Cold Knife
  • Max. Width:100mm
  • Net. Weight:34kg
  • Dimension:415×380×410mm
  • Light and portable;

  • Small size, save space;

  • Excellent price/performance ratio;

  • Easy to operate;

  • Designed by human structural mechanics to reduce fatigue strength;

  • Digital adjustment for the length of belt length, cutting length and cutting times;

  • A wide variety of belts can be used in this series of machine;

  • With a color display control panel, so convenient and comfortable is the operation or the production;

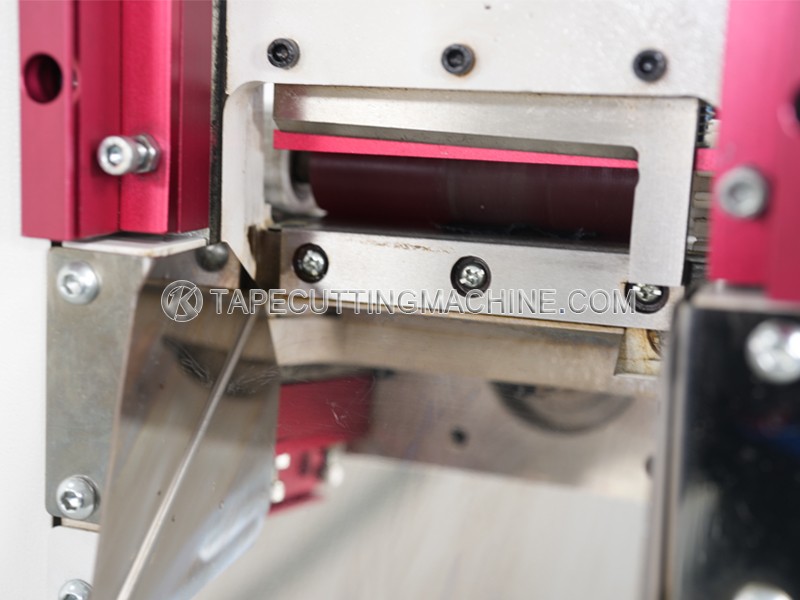

  • This machine is equipped with imported high-quality tungsten blade;

  • Material feeding is driven by stepping motor which has high reliability and long lifespan of usage;

  • Parameters have set in system can be saved automatically and permanently.

Download: (1)

Applicable Material:flat ribbon cable, copper sheet, flexible tubes, braided copper wire, etc.

Cutting Speed:1800~4800 pcs/h(changed according to the cutting length)

Cutter Type:cold knife

Cutting Length:0.1~9999.99mm

Cutting Width:Max. 100mm

Power Supply:AC 220V 50HZ

Air Pressure:0.5~0.7Mpa

Power Rating:180W

Weight:35Kg

Dimension(L*W*H):780*380*460mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
