Stainless Steel Wire Rope Melting & Cutting Machine

  • Model:KS-R16R
  • Blade Type:
  • Diameter:
  • Net. Weight:
  • Dimension:

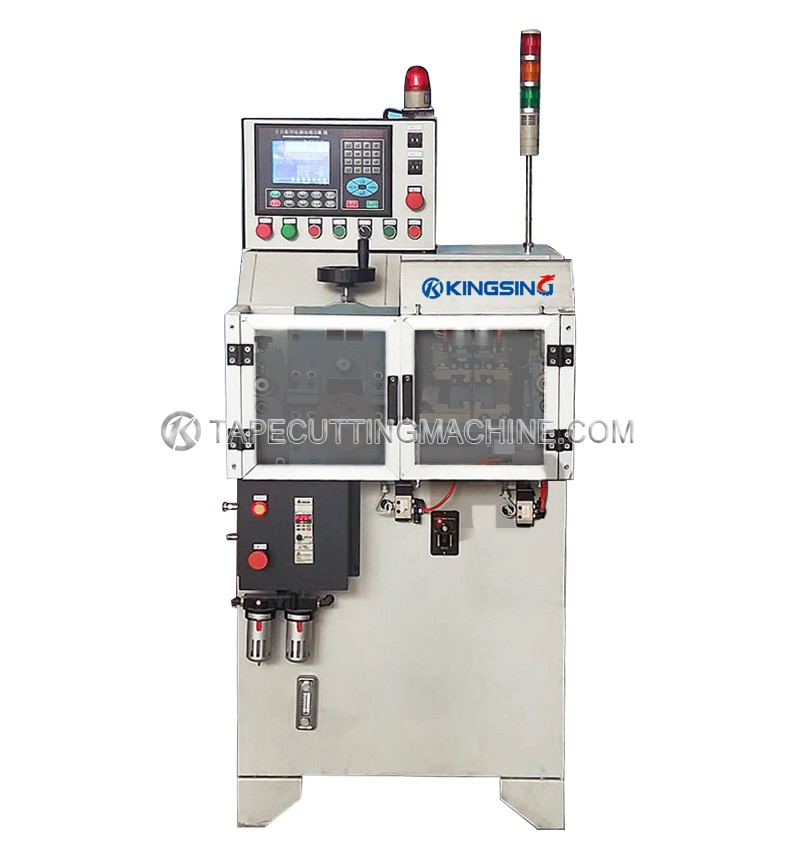

This is a fully automatic wire rope hot melt cutting machine, it uses a hydraulic motor with high torque to feed the material, the cutting length can be set in the program freely. The cutting edge will be heated and fused into a spherical shape, so the steel wire will not spread out, as shown in the picture.

The safety door is optional, when the safety door is opened, the machine can automatically alarm and stop.


Scope of application: can melt 6mm galvanized steel wire rope
Motor power: 2.2KW
Melting power: 10KW
Melting efficiency: once every 2 seconds
Weight: 350KG
Dimensions: 1200*800*1800mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
