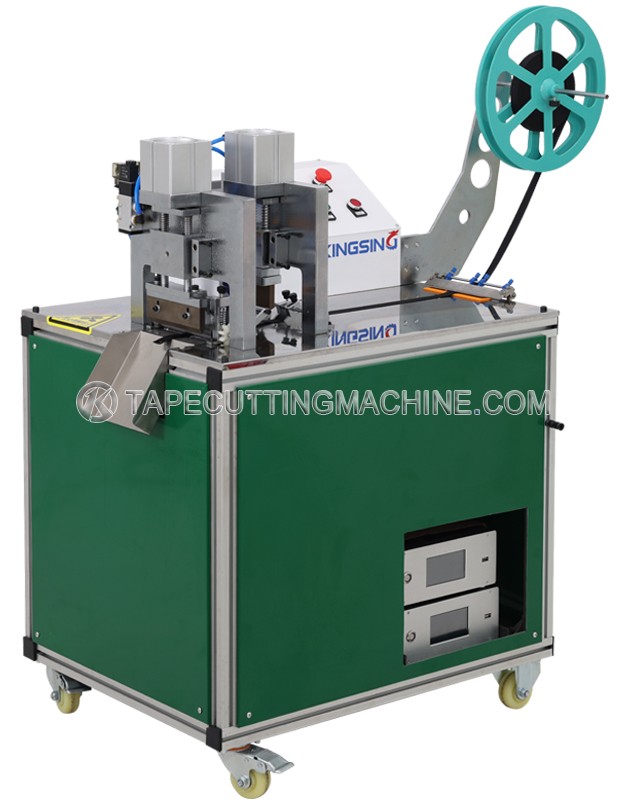

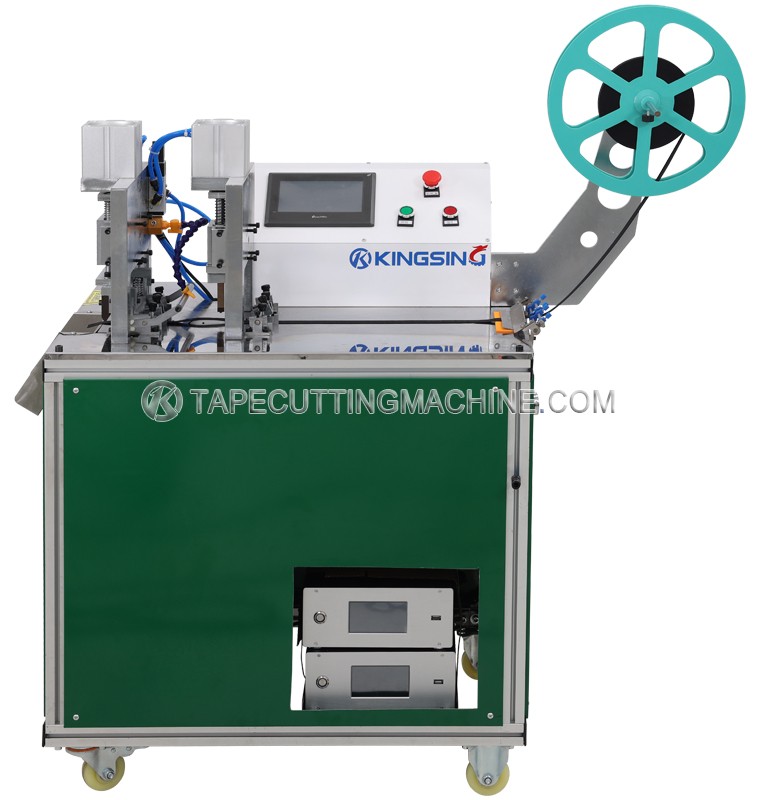

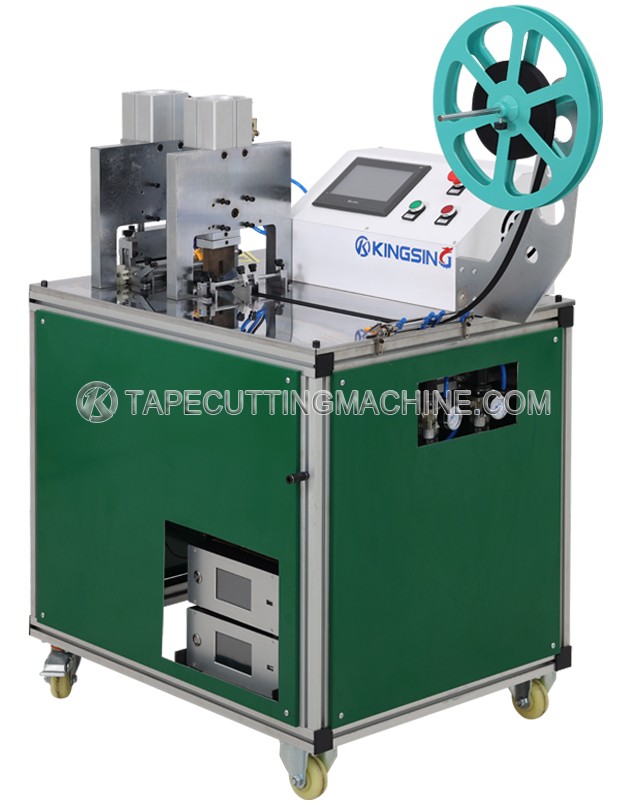

Ultrasonic Tape Cutting and Hole Punching Machine

  • Model:KS-U200P
  • Blade Type:
  • Max. Width:
  • Net. Weight:
  • Dimension:
  • Robust & Reliable: The machine is designed for durability and dependability in various industrial applications.

  • Excellent Price/Performance Ratio: Offers great value for money with competitive pricing and superior performance.

  • Simple Operation: Users can start operating the machine quickly without needing any prior training.

  • Computer-Programmed Length Adjustment: Allows for precise control and adjustment of length data through computerized settings.

  • Efficiency Improvement: Enhances productivity, improves product quality, and reduces labor costs.

  • Material-Deficient Stop Function: Automatically halts operation when materials are insufficient, preventing wastage.

  • Adjustable Feeding Roller Pressure: Customizable pressure settings ensure optimal feeding effects.

  • Integrated Tape Cutting & Hole Punching: This multi-functional machine can perform hole punching, tape cutting, continuous hole punching, tape cutting, and optional coiling.

  • Ultrasonic Cutting & Punching Method: Delivers smooth incisions without rough edges or loose selvedges.

  • PLC and HMI Control System: Equipped with advanced control technology, allowing easy and fast configuration of cutting and punching parameters via a user-friendly interface.

Download: (1)

Functions:Cutting and hole punching
Cutting Width:Max.160mm
Cutting Length:1~99999mm
Power Rating:4.5KW
Ultrasonic Frequency:15KHz/18KHz
Speed:100pcs/min (depends on the cutting length)
Air Pressure:0.5~0.7MPa
Power Supply:AC220V 50Hz
Operation Temperature:0~40℃
Environment Humidity:30%~80%RH (No condensation at 40℃ )
Net Weight:200Kg
Dimension(LxWxH):850x650x1400mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
