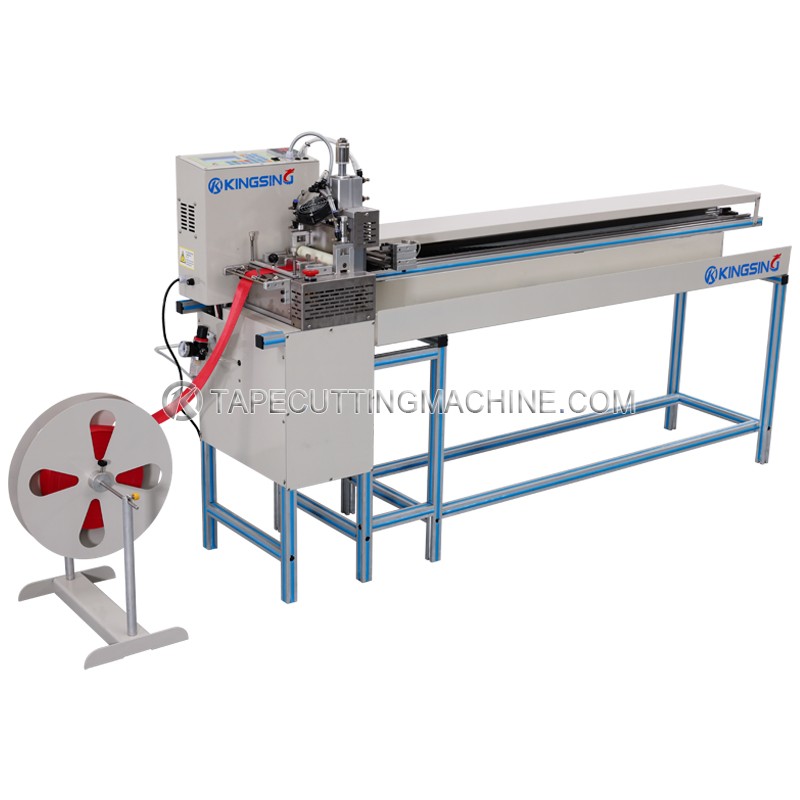

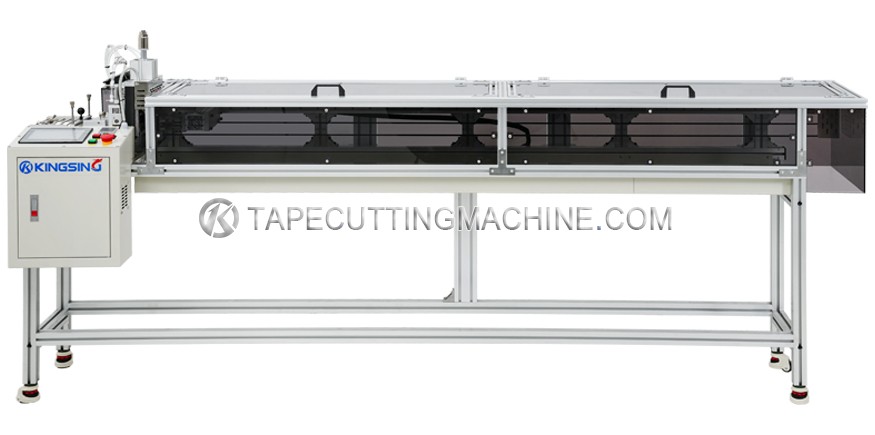

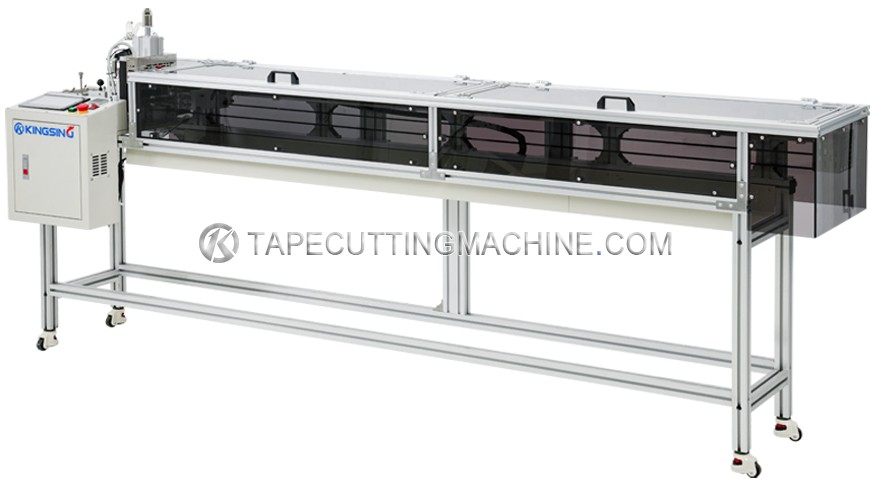

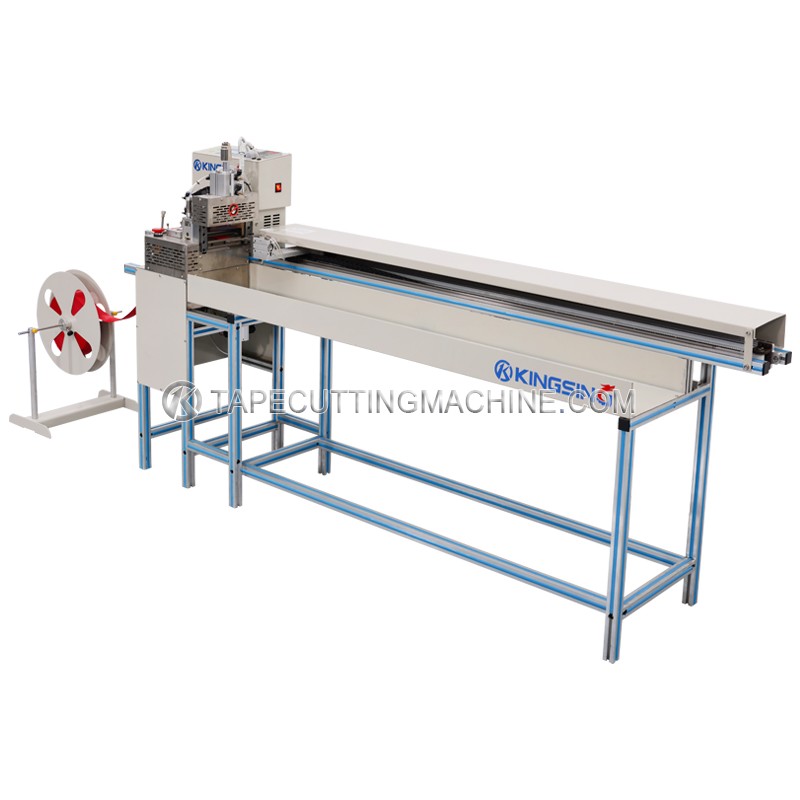

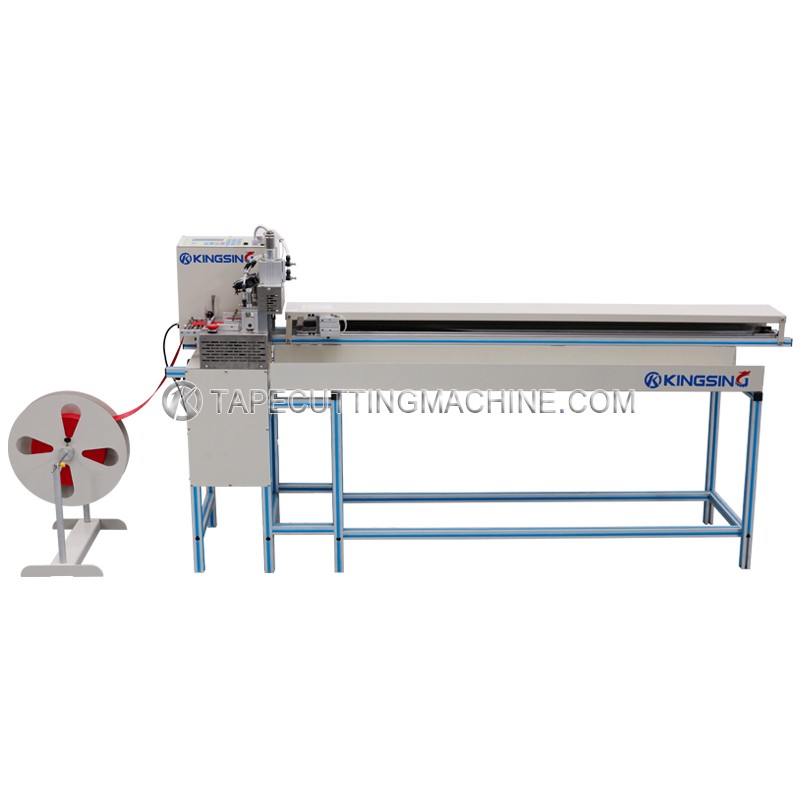

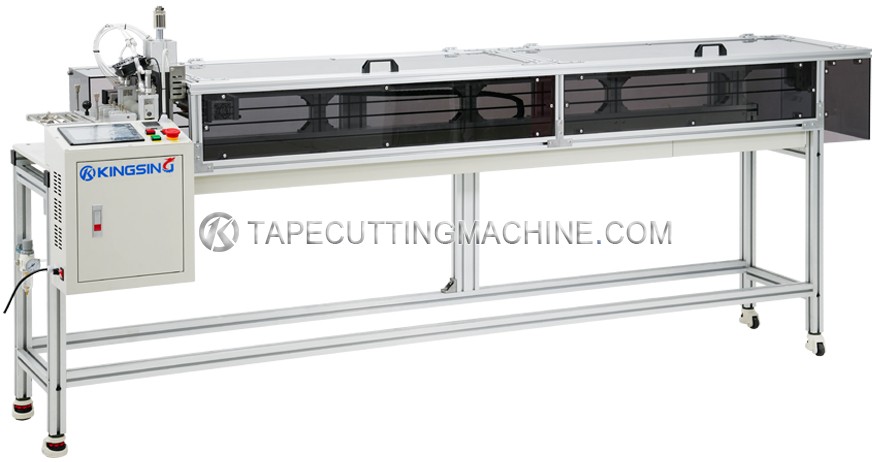

This machine adopts the method of pulling material instead of the traditional roller feeding, it is beneficial to improve the feeding accuracy of elastic materials.
The default Max. cutting length is 1500mm, we can customize the stroke of the pulling manipulator according to your required tape cutting length.
There is no indentation on the material surface, and the finished product is collected neatly.
The default tape cutting unit is cold and hot knife, it adopts a heavy-duty cylinder to drive the blade, so it's able to cut off thick materials. We can also customize the tape cutting unit according to your needs.
Knife Type: Hot&cold knife
Cutter Driving Mode: Pneumatic
Cutting Width: Max. 140mm
Cutting Length: Max.9999.9mm
Rated Power: 1200W
Heating Temperature: 0~350℃
Speed: 1500pcs/hour (depends on the material and cutting length)
Operation Temperature: 0~40℃
Power Supply: AC220V 50/60Hz
Air Pressure: 0.5~0.7MPa (Clean, dry, stable compressed air)
Environment Humidity: 30%~80%RH (No condensation at 40℃)
Net Weight: 110Kg
Dimension(L×W×H): 2800×700×1200mm
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
