Cold Knife Belt Cutting Machine

  • Model:KS-160C
  • Blade Type:
  • Max. Width:
  • Net. Weight:32Kg
  • Dimension:

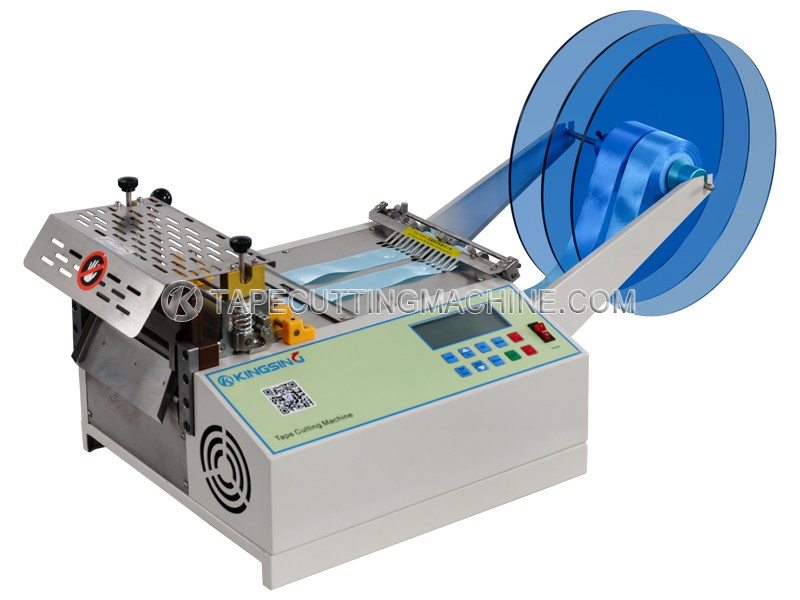

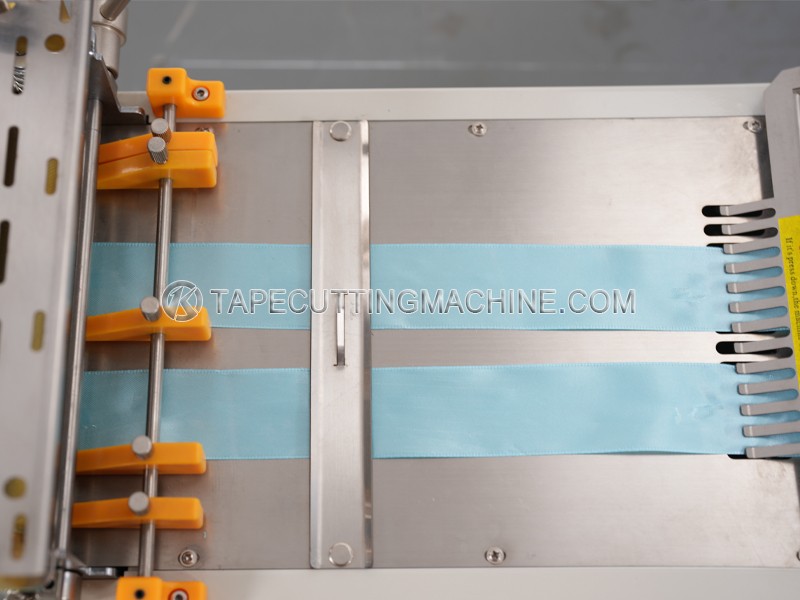

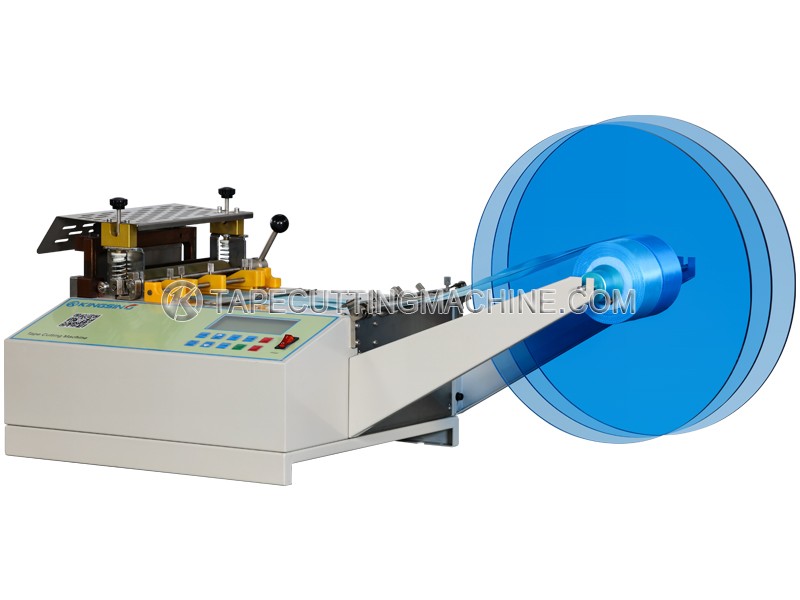

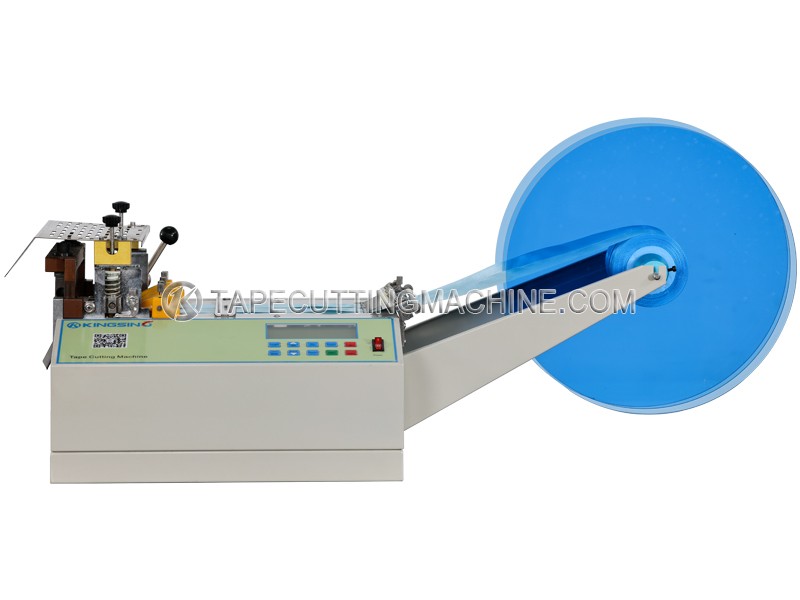

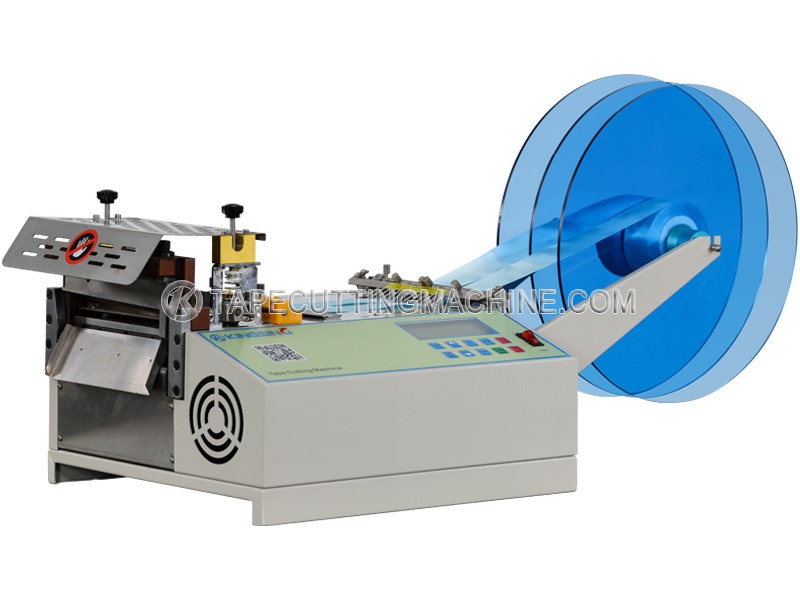

This is a universal cold-knife tape cutting machine with a maximum tape width of 160mm. When the width of the tape is small, it can also cut multiple rolls of material at the same time, which can greatly increase the production capacity.

Sometimes we need rounded corners when cutting hook and loop tape, at this time, we can customize a special-shaped cutting die according to your needs to achieve special-shaped cutting, as shown in the picture below.

Straight CutKINGSING
Round & StraightKINGSING
Round CornerKINGSING
Download: (1)

Max. Cutting Width:160mm

Rated Power:250W

Capacity:60~100pcs/min(depends on the cutting length)

Knife Type:Cold knife

Cutting Length:1~99999mm

Operation Temperature:0~40℃

Environment Humidity:30%~80%RH(No condensation at 40℃)

Power Supply:AC220V 50Hz(110V can be customized)
