Cold Blade Belt Cutting Machine

  • Model:KS-130C
  • Blade Type:Cold Knife
  • Max. Width:125mm
  • Net. Weight:28Kg
  • Dimension:

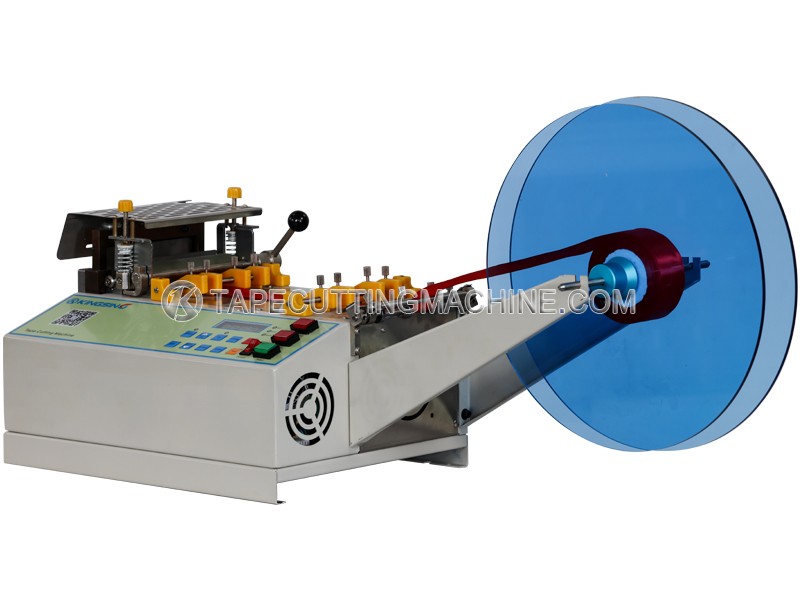

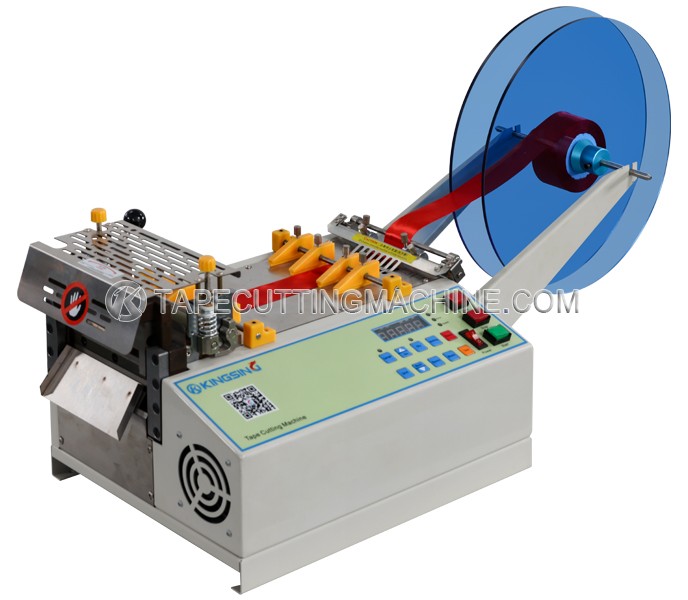

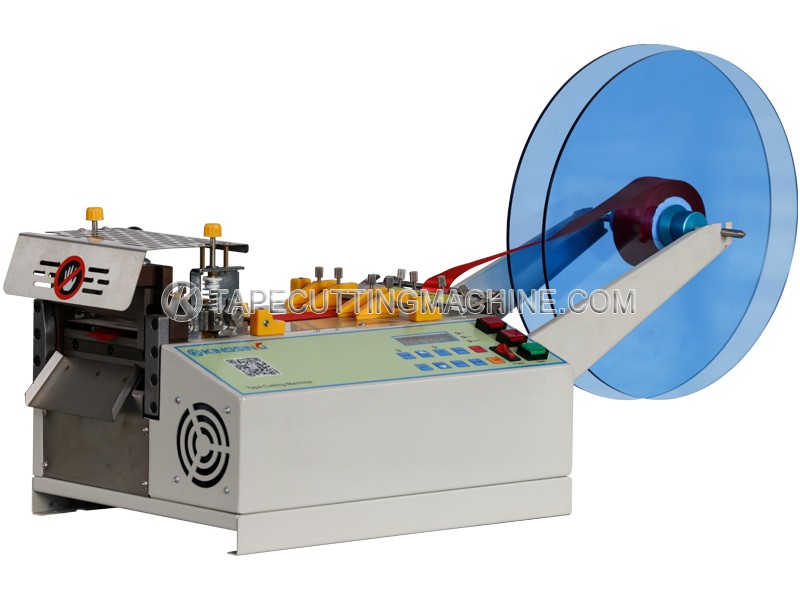

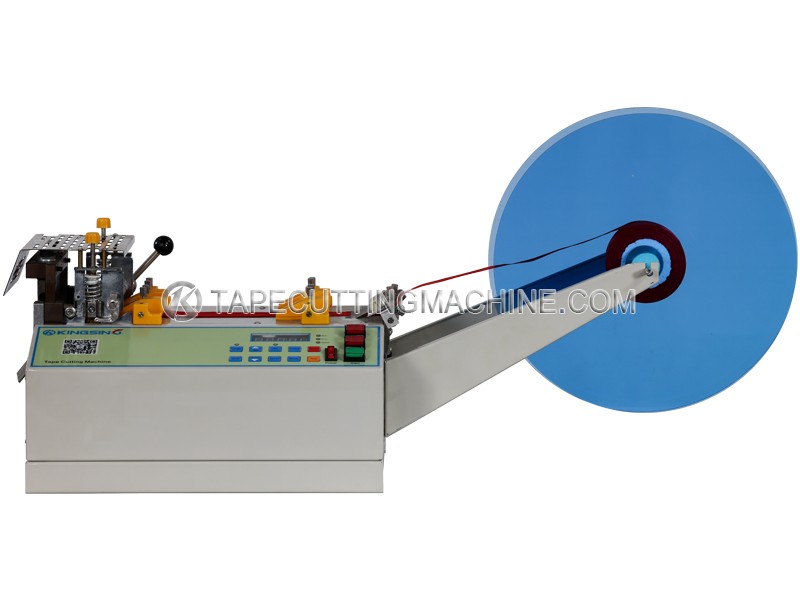

This is an universal cold blade belt cutting machine, the Max. tape width can reach 125mm. You only need to set the cutting length and quantity in program, the rest of the work is done automatically. Once the material is used up, it will stop working automatically.

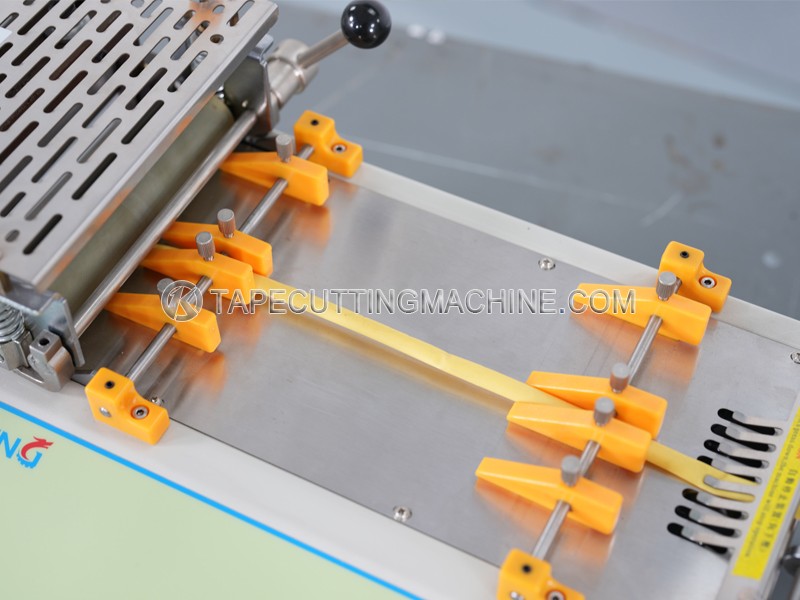

Sometimes we need rounded corners when cutting hook and loop tape, at this time, we can customize a special-shaped cutting die according to your needs to achieve special-shaped cutting, as shown in the picture below.

Straight CutKINGSING
Round & StraightKINGSING
Round CornerKINGSING
Download: (1) (2)

Max. Cutting Width:125mm

Rated Power:200W

Capacity:60~100pcs/min(depends on the cutting length)

Knife Type:Cold knife

Cutting Length:1~99999mm

Operation Temperature:0~40℃

Environment Humidity:30%~80%RH(No condensation at 40℃)

Power Supply:AC220V 50Hz(110V can be customized)


Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
