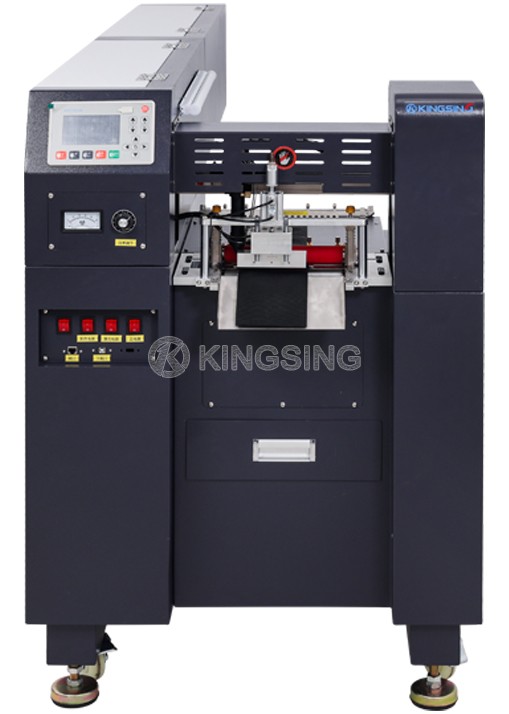

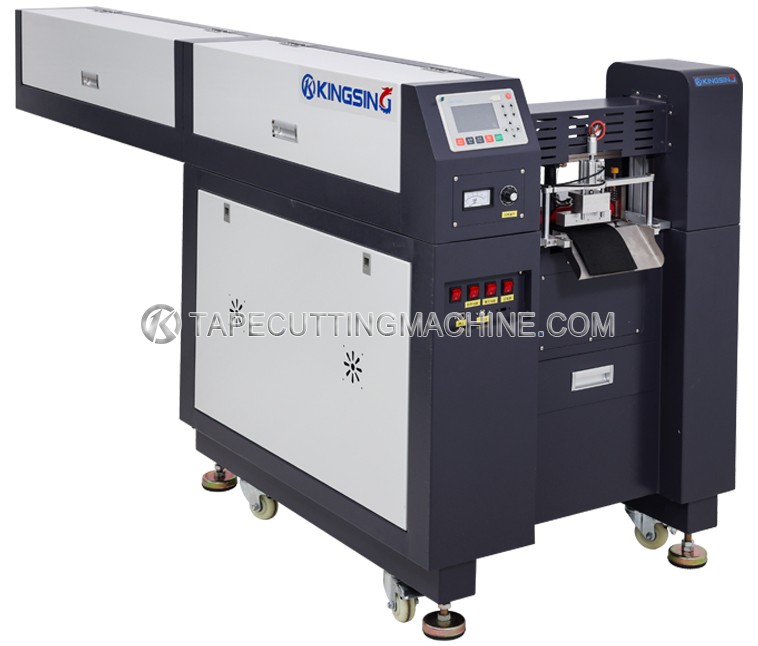

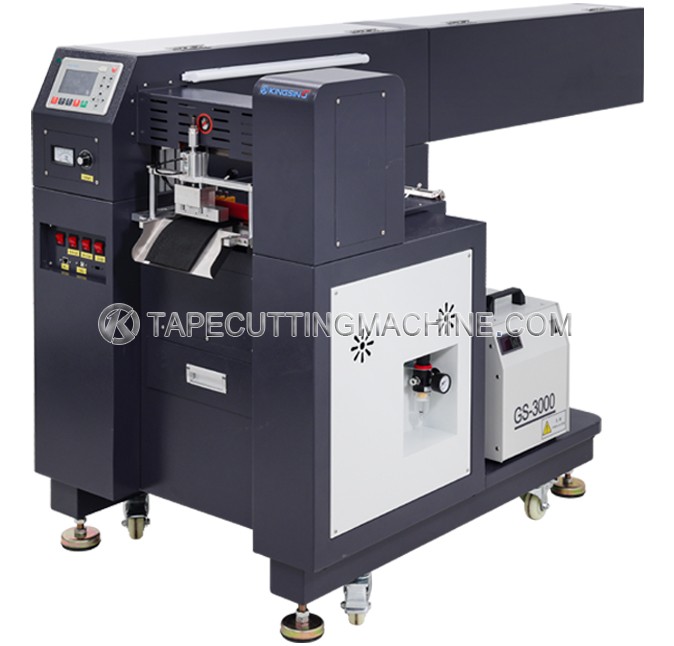

Single Head Laser Tape Cutting Machine

  • Model：KS-L301M
  • Blade Type：
  • Max. Width：
  • Net. Weight：
  • Dimension：
Online Inquiry
Download: (1) (2) (3)

Cutting Mode: Laser cutting

Laser Head Number: 1

Laser Power: 160W

Laser Type: CO2 sealed glass tube laser

Laser Wavelength: 10.6um

Cooling Mode: Circulating water-cooling

Laser Energy Control: 0~100%, 0.1% continuously adjustable

Positioning Accuracy: ＋0.1mm

Control Panel: 4.3 inch color touch screen

Software: Laser CAD

Machine Power: 1000W

Air Pressure: 0.5~0.8Mpa

Power Supply: AC220V 50Hz

Operation Temperature: 0~40℃

Net Weight: 220Kg

Dimension(LxWxH): 2100*900*1140mm

Graph Format: G-code,AI, SVG, PDF, DXF, PLT, DSTDSB, UD5,BMP, JIFJPG,PNG, etc

Consumables: Sealed CO2 laser tube, reflecting mirror, nozzle, water pump, drive

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
