Corrugated Tubing Cutting Machine

  • Model:KS-P530D
  • Blade Type:
  • Diameter:
  • Net. Weight:
  • Dimension:

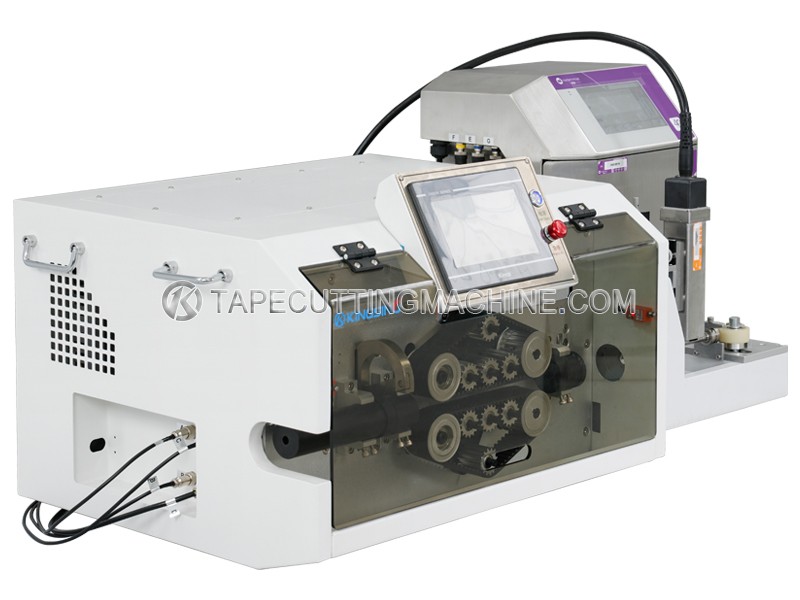

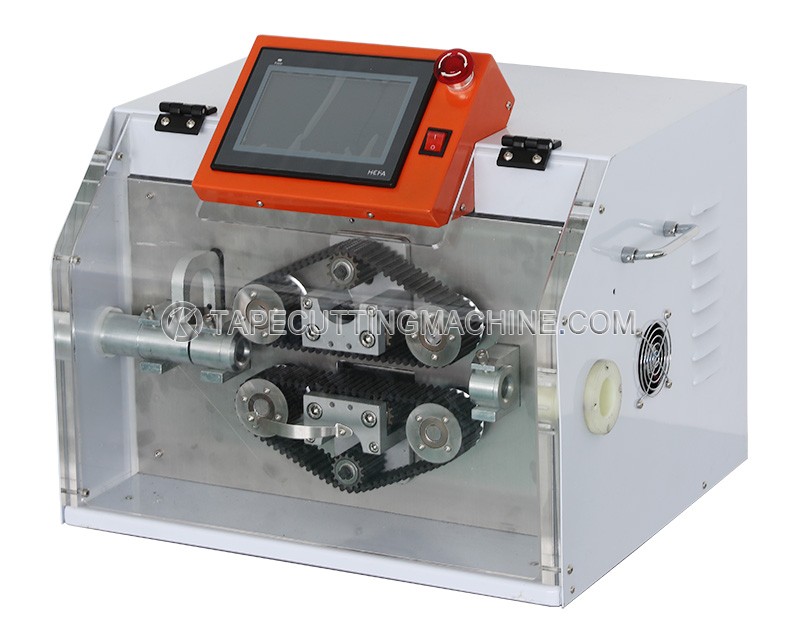

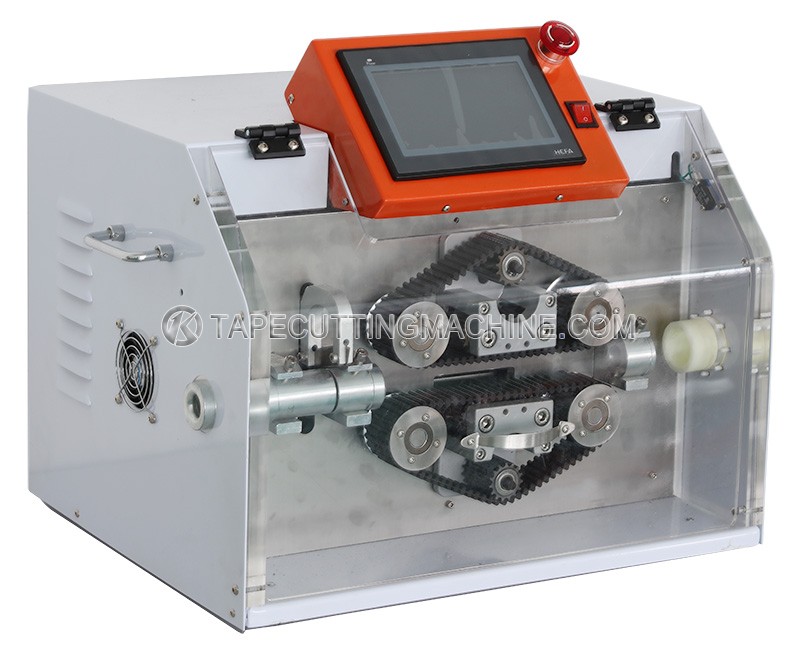

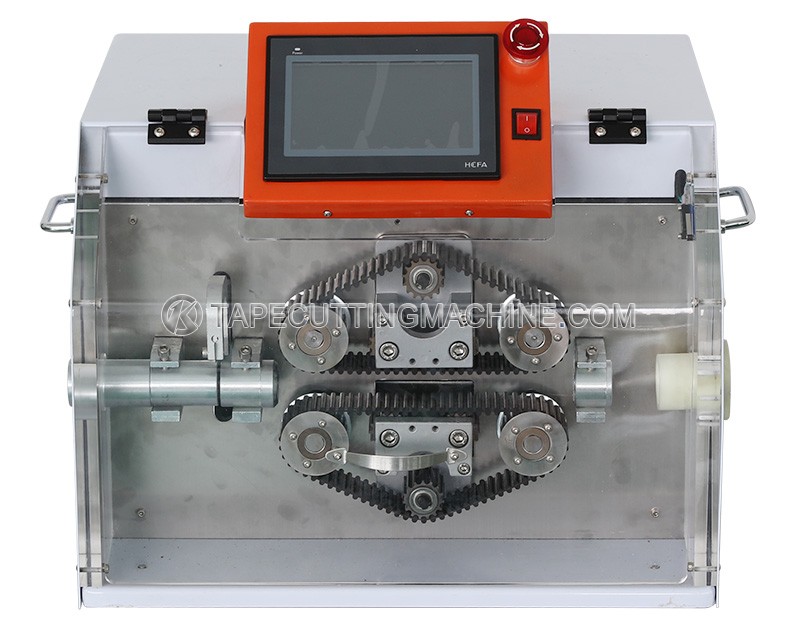

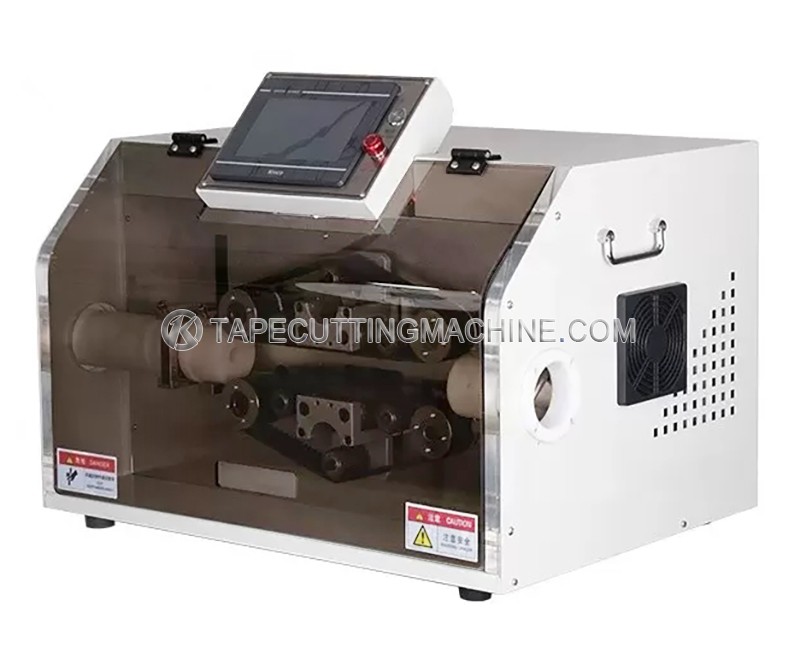

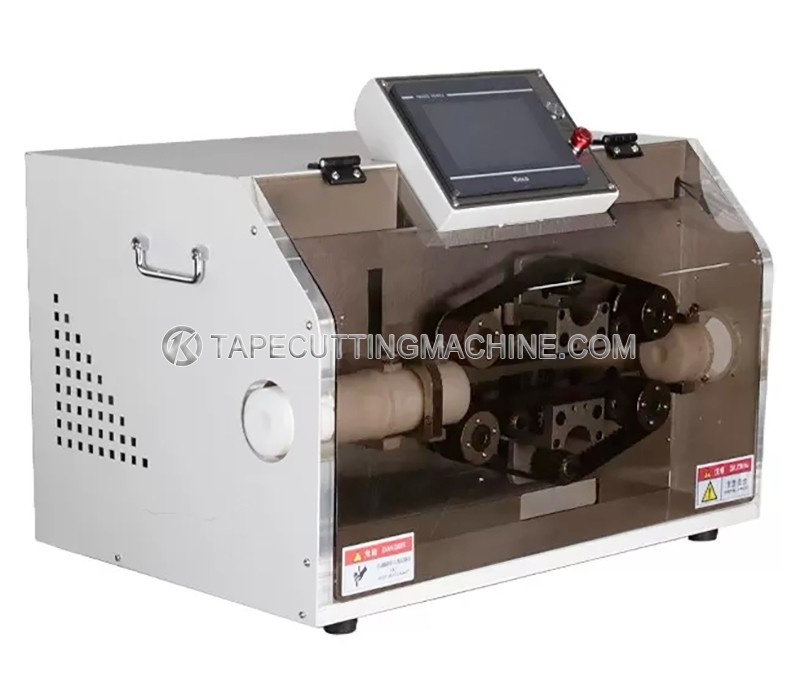

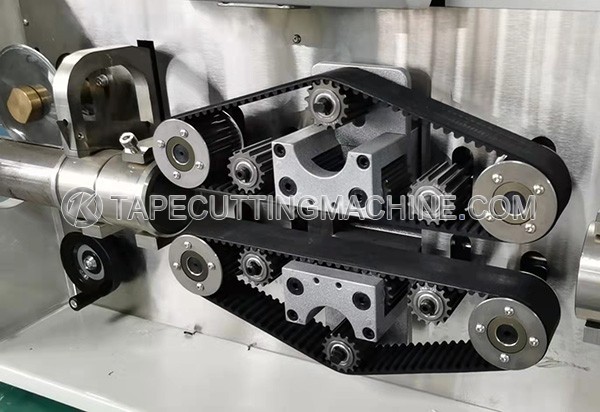

This is an automatic corrugated tube cutting machine, it's also suitable for cutting all kinds of PVC hoses, PE hoses, TPE hoses, PU hoses, silicone hoses, heat shrinkable tube, etc. It adopts belt feeding, and the contact area between the feeding belt and the corrugated pipe is large, which can effectively prevent the material from slipping during the feeding process and ensure good feeding accuracy.

KINGSING

Color touch screen operation interface, all parameters are intuitive and easy to understand, just simply set the cutting length and quantity, the machine can work automatically. The cut-off knives use standard utility blades on the market, which can be easily purchased around the world, so the cost of use is very low.

The optional longitudinal slitting function of the corrugated pipe can be selected, and the corrugated pipe is longitudinally cut while cutting to a fixed length, as shown in the figure.

KINGSINGKINGSINGKINGSING
Normal Cutting EffectOptional Slitting UnitSlitting Effect


Download: (1) (2)

Available Tube Diameter:5~30mm(depends on material)

Cutting Length:Max.9999.9mm

Cutting Accuracy:±Lx0.01mm(L=cutting length)

Speed:3600pcs/hour(L=100mm)

Blade Type:Utility knife

Power Rating:300W

Operating Temperature:0~40°C

Humidity:10%~90%RH(non-condensing)

Power Supply:AC220V/50-60Hz

Net Weight:70KG

Dimension(LxWxH):580x470x500mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
