Tube Cutting and Taping with Inkjet Printing Machine

  • Model:KS-P915T
  • Blade Type:
  • Diameter:
  • Net. Weight:
  • Dimension:

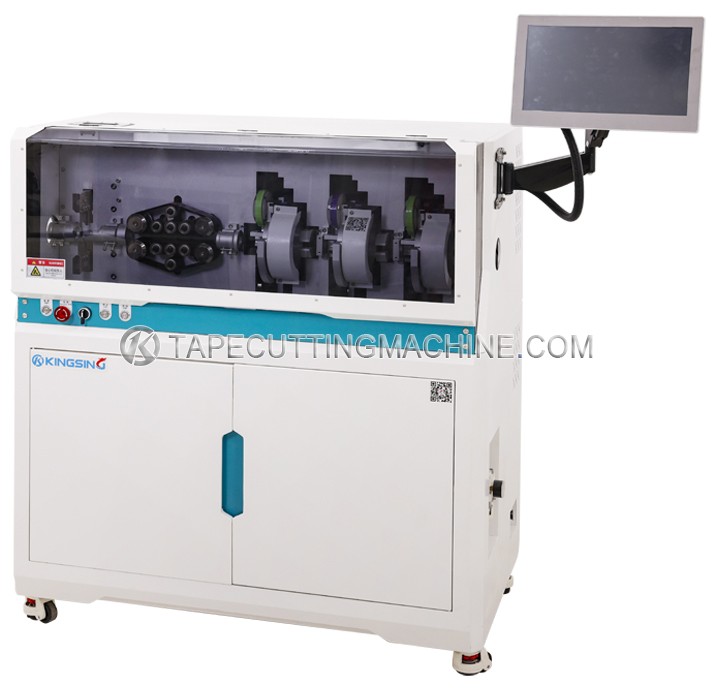

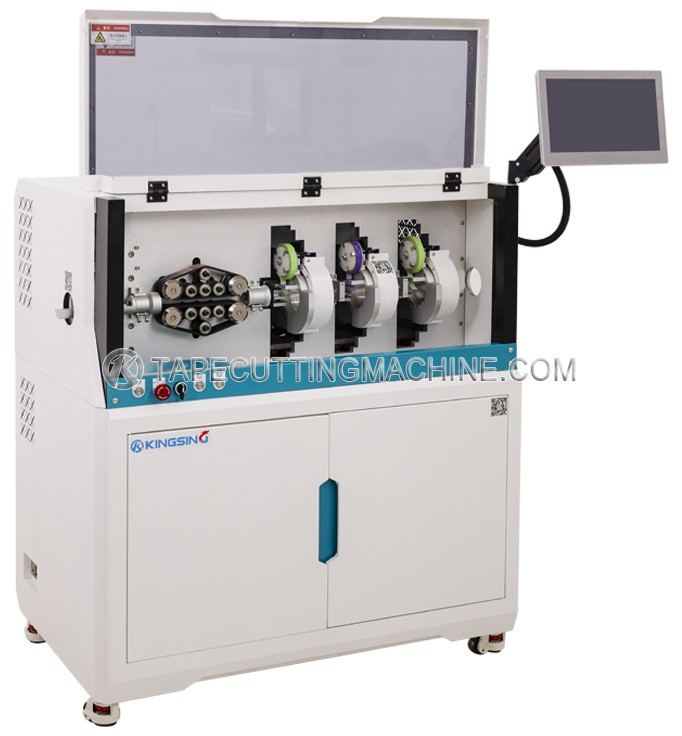

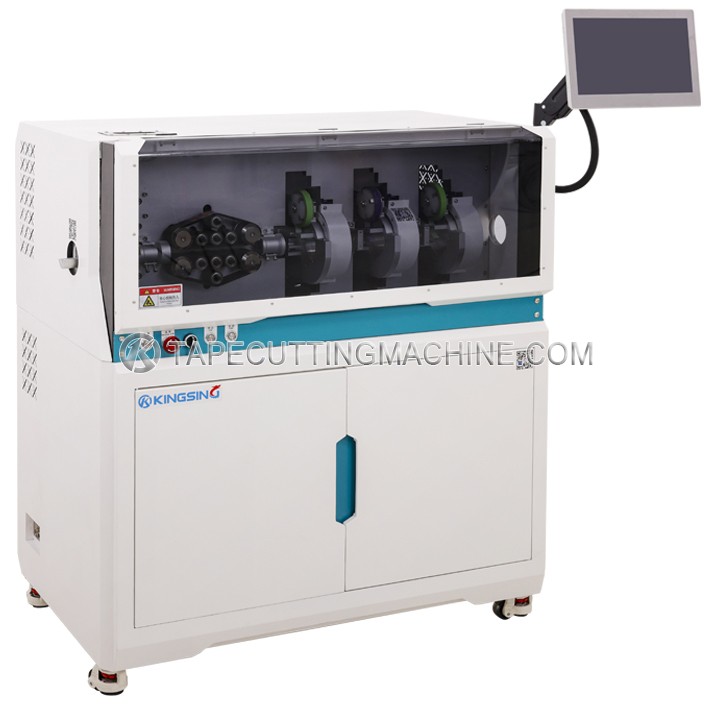

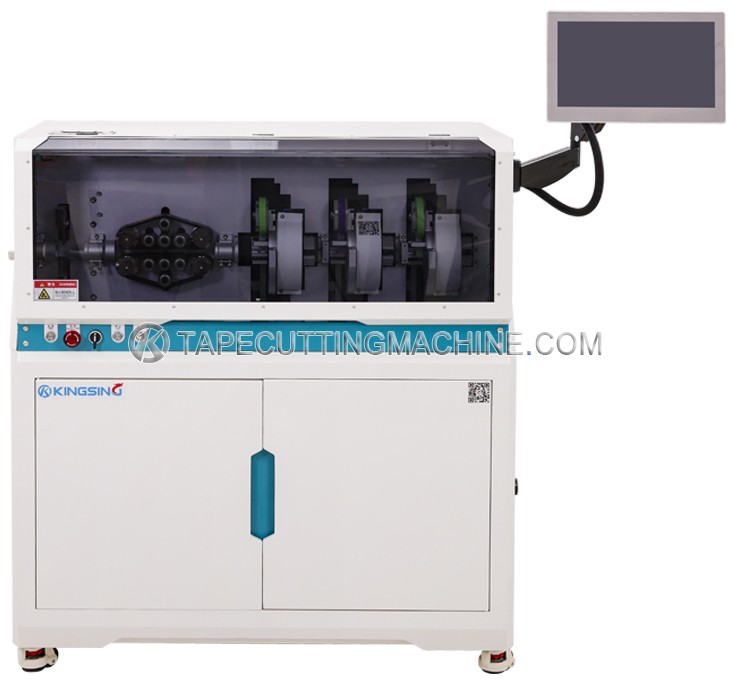

KS-P915T is an automatic nylon braided hose cutting and taping machine, it is equipped with 3 taping stations, the taping sequence can be selected freely in the program. The taping function can also be turned off in the program, then you can use this machine to cut normal flexible hoses, such as corrugated tubes, silicon tubes, etc. Color touch screen operation interface, parameter setting isintuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time. Optional inkjet printing system and barcode scanner. In addition, it can also be optionally equipped with a computer industrial control system that supports MES connection, with a built-in network interface, which can be connected tothe MES system through a local area network, to realize remote reading or setting of parameters remote production tasks and other functions.

Download: (1) (2)

Pipe Diameter: Ф9~Ф20mm (depends on the pipe material)

Tape Specification: Width: 15mm ID: Ф76mm OD: 100mm (customized)

Cutting Accuracy: ± 0.5+L x 0.002mm (L=cutting length)

Speed: 300pcs/hour (Depends on cutting length and wrapping turns)

Power Rating: 1000W

Program Memory: Max.100 groups of programs

Optional Function: Industrial computer, MES, inkjet printer, barcode scanner, etc.

Power Supply: AC220V 50/60Hz

Air Pressure: 0.5~0.7MPa (Must be clean, dry and stable compressed air)

Operating Temperature: 0~40℃

Humidity: 20%~70%RH (no condensation at 40℃)

Dimensions (L×W×H): 1750*750*1560mm (68.90*29.53*61.42in)

Net Weight: 276Kg (608.48lbs)
