Hot Knife Braided Sleeving Cutting Machine

  • Model:KS-B100N
  • Blade Type:
  • Max. Width:200mm
  • Net. Weight:85Kg
  • Dimension:510*490*1010mm

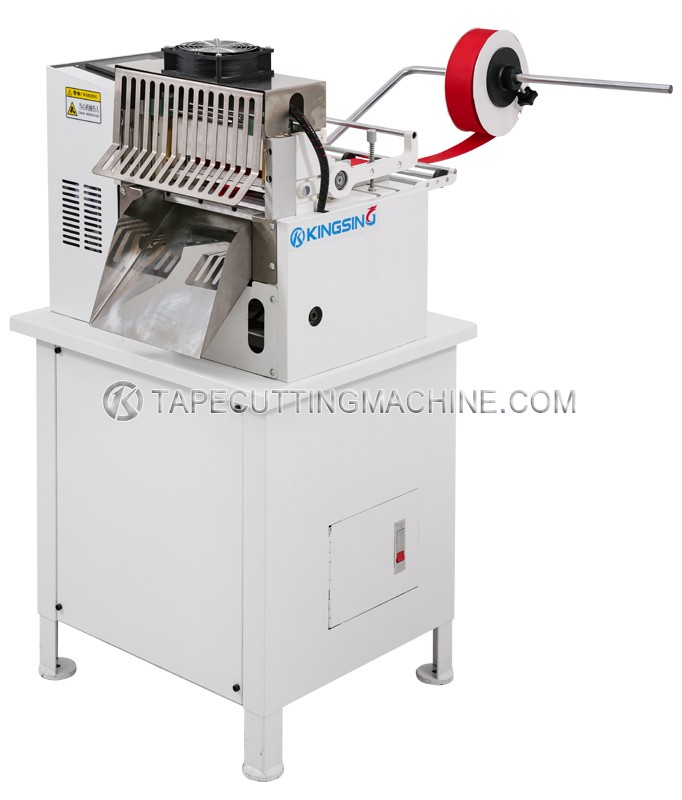

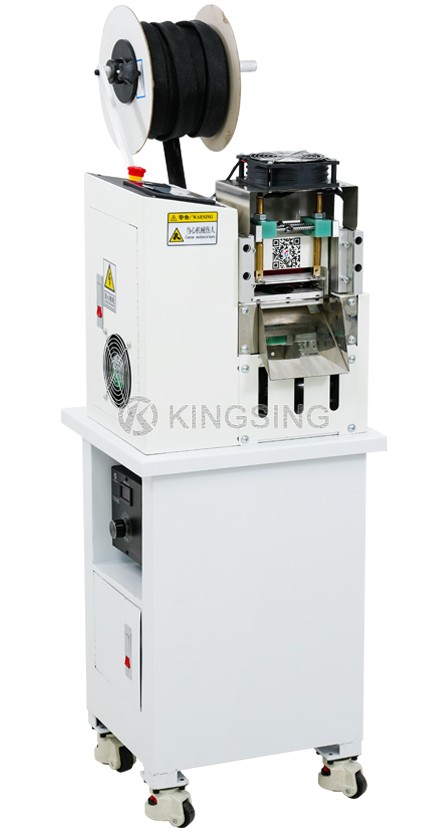

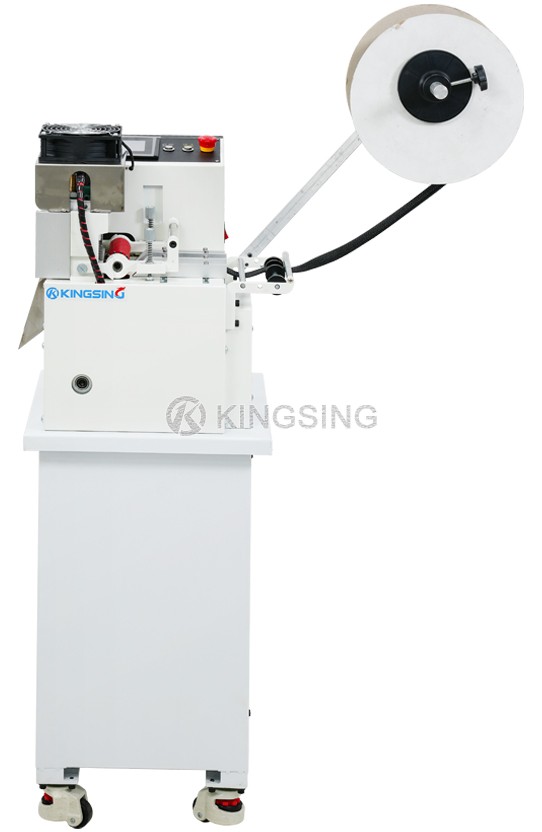

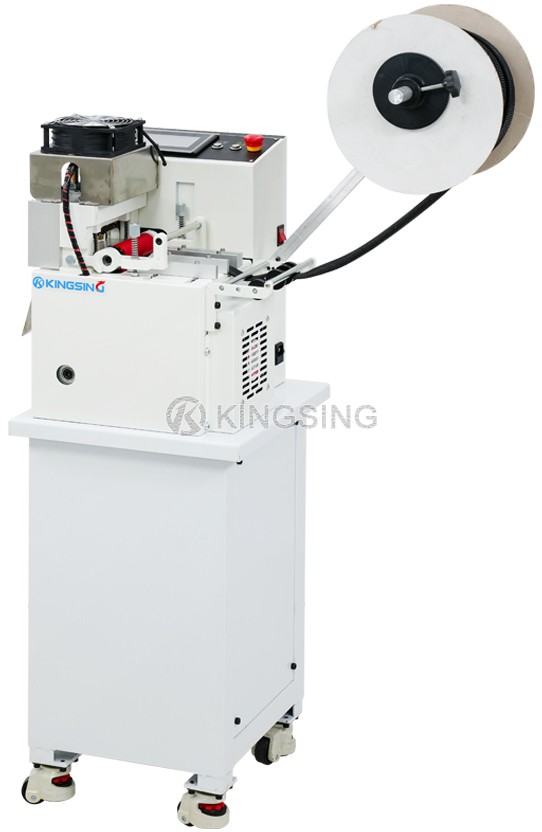

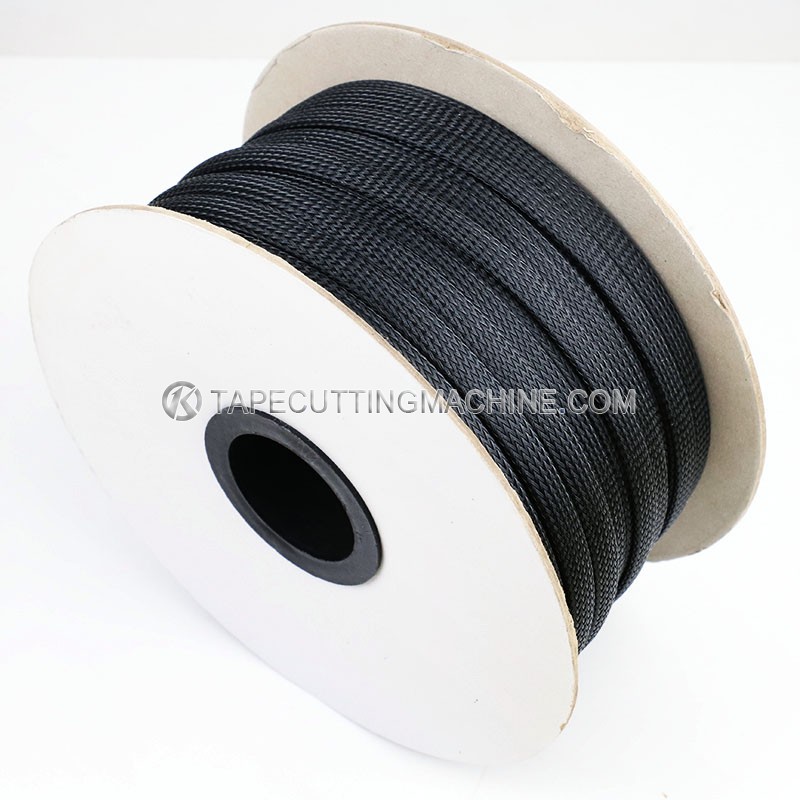

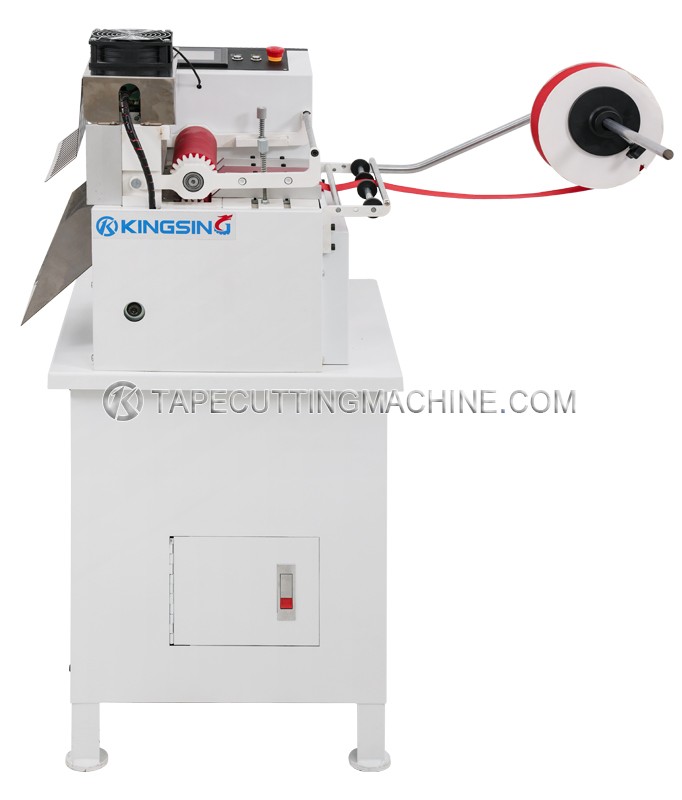

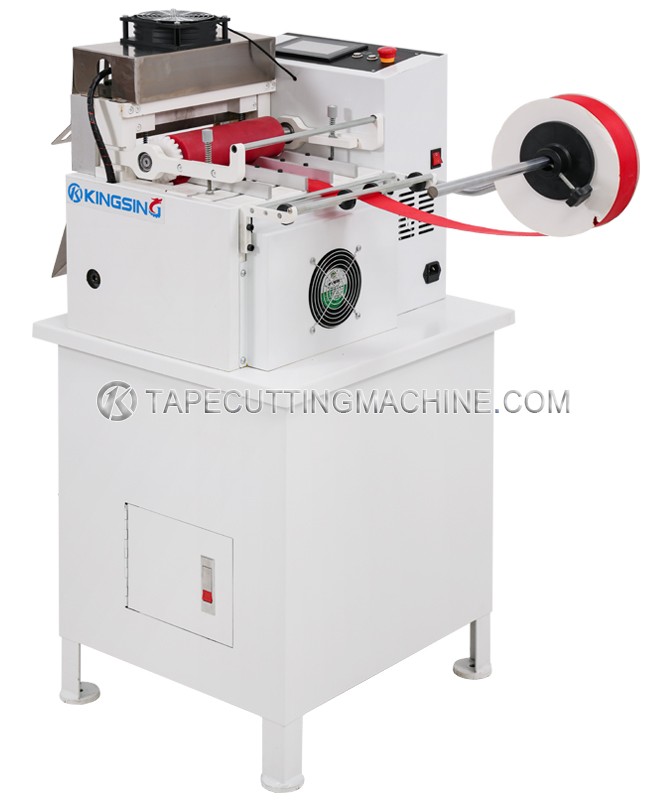

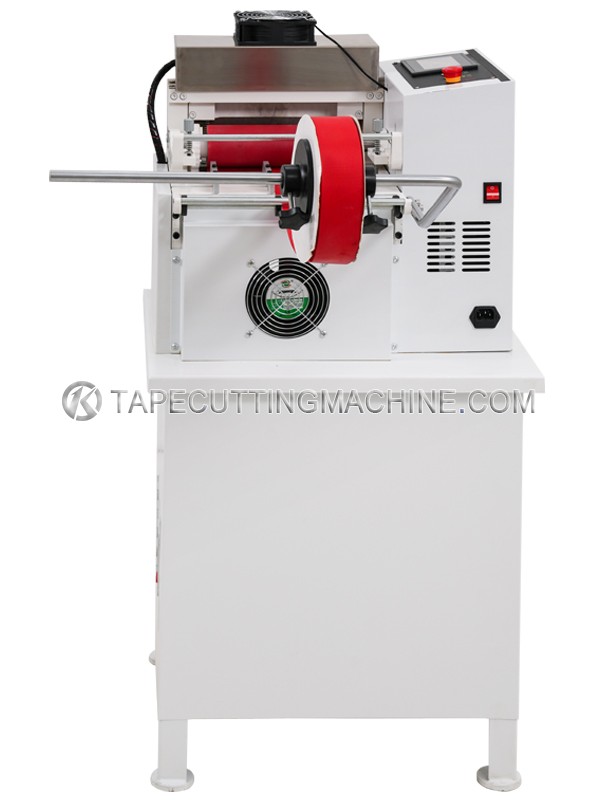

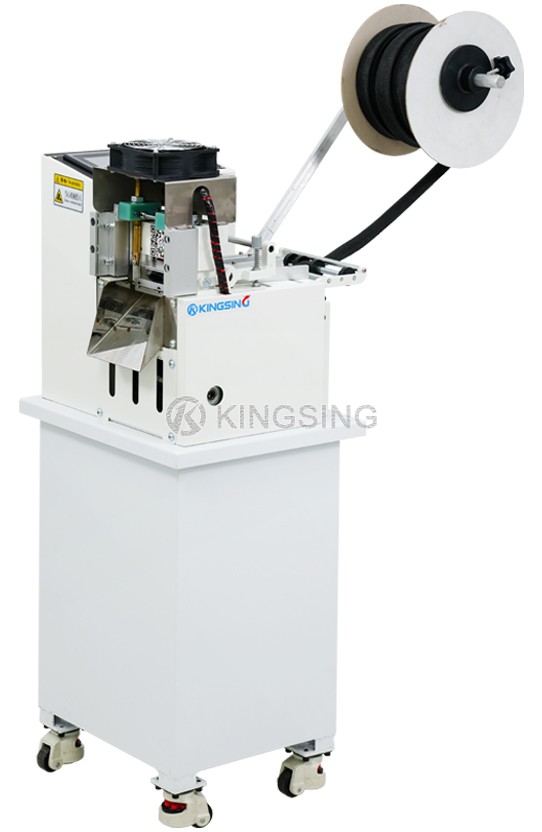

This is a fully automatic hot knife tube cutting machine, it is specially designed for cutting nylon braided mesh tubes (braided wire sleeving, PET braided mesh tube).

It adopts high temperature resistance wire to scald the material, which not only achieves the effect of edge sealing, but also the mouth of the tube does not stick together. If a normal hot knife tape cutter is used to cut this kind of material, the tube mouth will most likely stick together.

With its wide blade, it's able to cut 3 relatively narrow sleeves at the same time. High temperature and quick setup, your heavy duty jobs will be done in no time.

KINGSING
Download: (1)
ModelKS-B100N-1KS-B100N-2
Cutting Length0.1-9999.9mm
Cutting Accuracy(±1+0.02*L) mm (L=cutting length)
Blade TypeHigh temperature resistance wire
Speed1200 pcs/hour (Depends on cutting length)
Power SupplyAC220V/ 50Hz or AC110V/60Hz (can be customized)
Rated Power800W
Heating Temperature0~880°C(adiustable)
Blade Width80mm200mm
Dimensions(LxWxH)460x440x990mm510x490x1010mm
Net Weight55KG95KG

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
