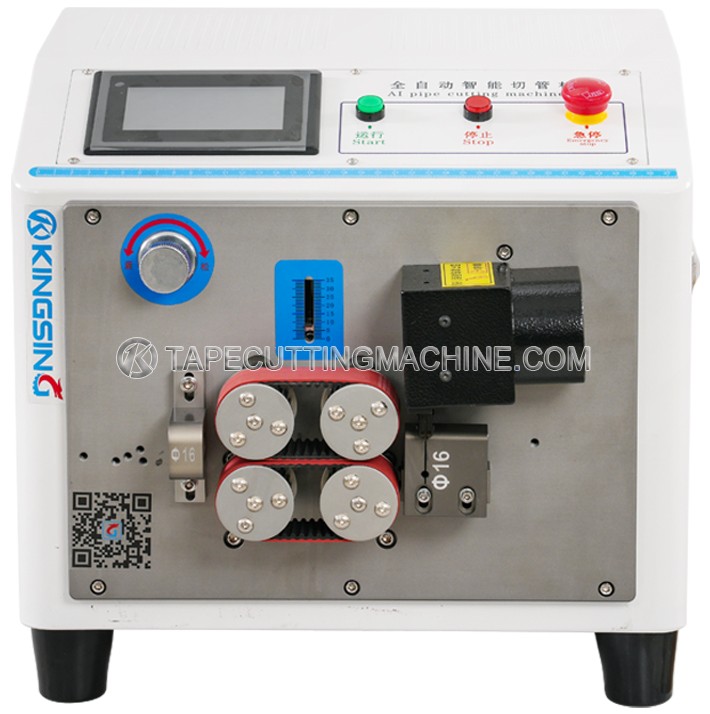

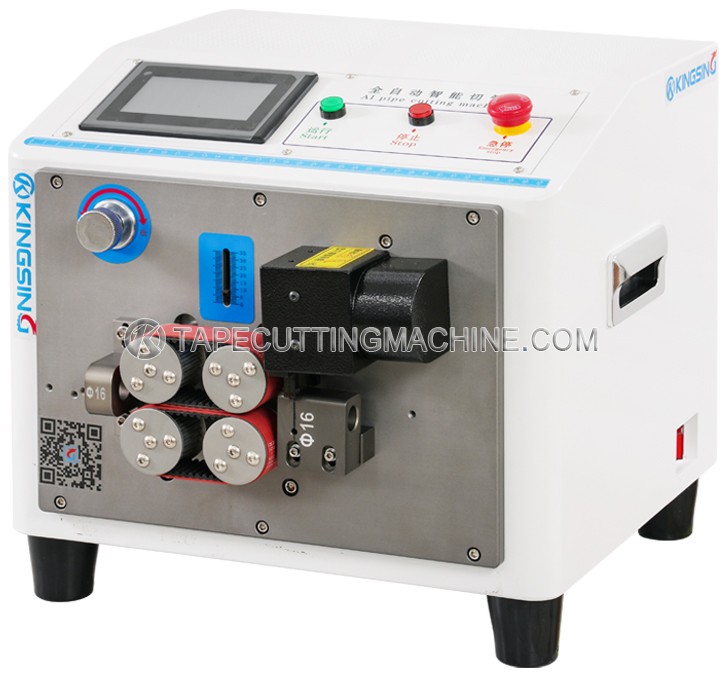

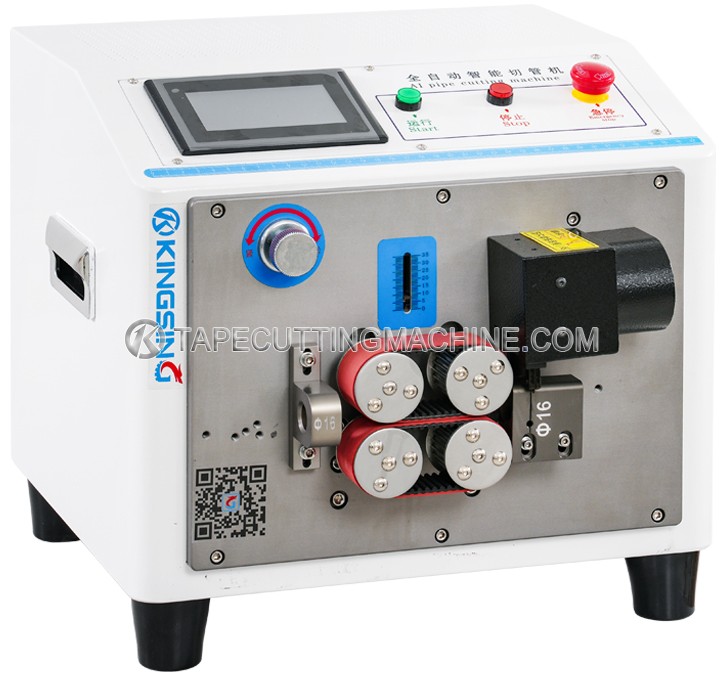

Automatic Computer Tube Cutting Machine

  • Model:KS-W600H
  • Blade Type:
  • Diameter:
  • Net. Weight:
  • Dimension:

This machine adopts the latest 32-bit intelligent control system, with a touch screen that switches between Chinese and English. It can store hundreds of pieces of information and call it at any time. It is efficient, convenient and fast. Suitable for heat shrink tube, PVC tube, nylon braided tape, rubber tube.

Download: (1)

Display mode: 4.3-inch touch screen operation

Power supply: AC 110/175-250V  60/50Hz

Power: 120W~220W

Cutting length: 0.1-99999.9mm

Cutting diameter: 0.1-16mm

Cutting tolerance: within 0.002×Lmm※L

Blade material: imported tungsten steel/high speed steel

Drive mode: 4-wheel hybrid drive simultaneously

Cutting per hour: 2000-20000 pieces

Pulse equivalent: no error within 5 meters

Blade motor accuracy per step: 0.03mm

Weight: 32kg

Dimensions: 400mm×700mm×350mm

Incoming and outgoing wire motor accuracy: Silent hybrid stepper motor 0.1mm per step

Remarks functions: automatic wire out, automatic wire in, timed start

Note:

  • The machine parameters are used as reference indicators. If the product is special, samples need to be confirmed.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
