Automatic Corrugated Tube Cutting Machine

  • Model:KS-P530F
  • Blade Type:
  • Diameter:
  • Net. Weight:
  • Dimension:

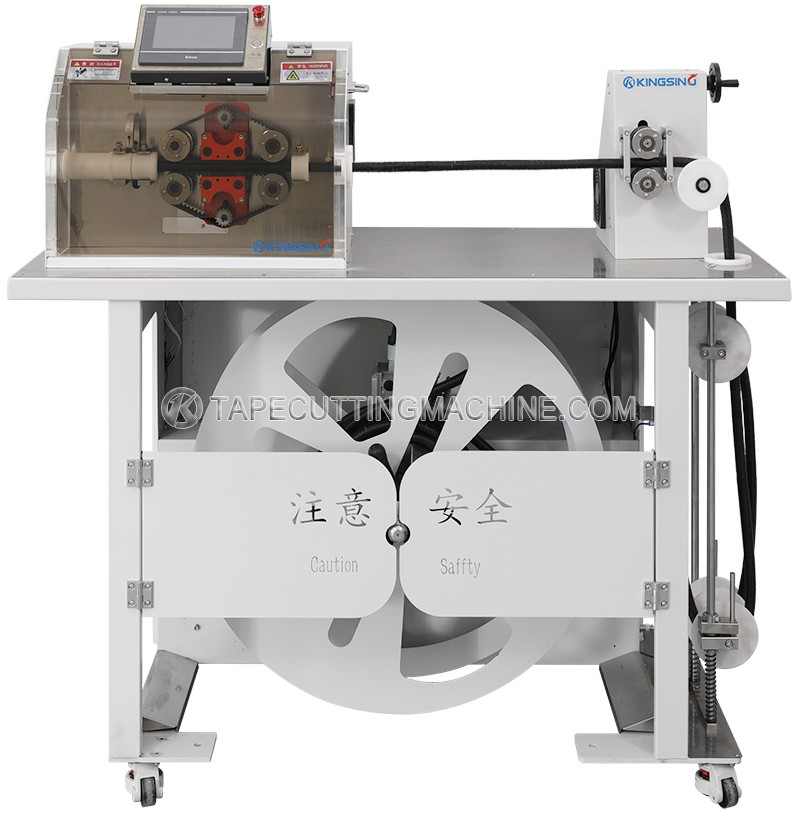

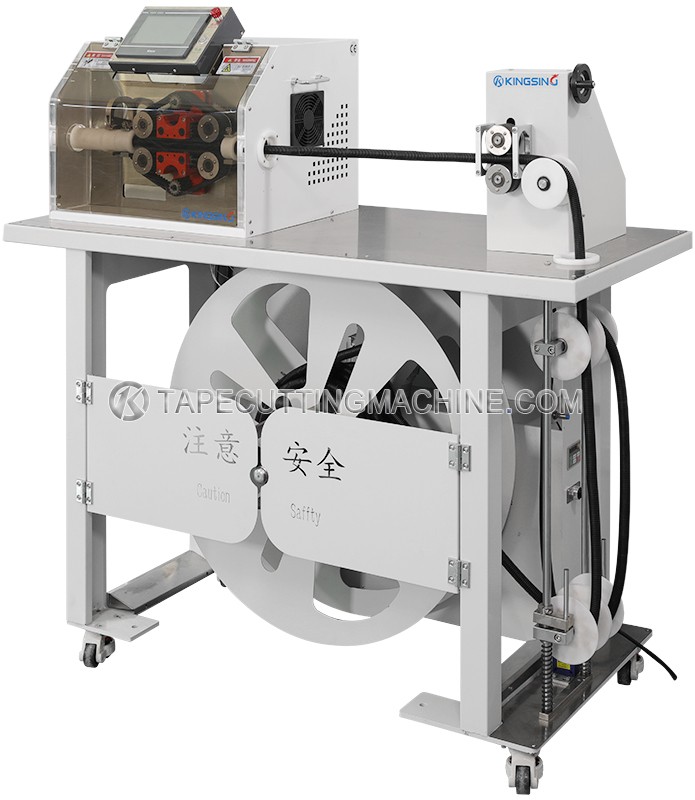

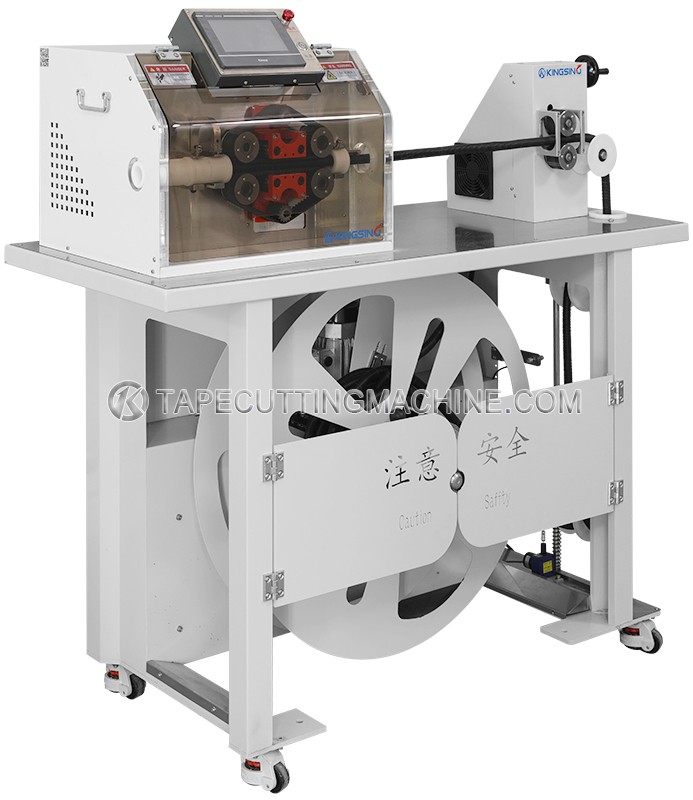

This is a fully automatic corrugated tube cutting machine, it's also suitable for cutting all kinds of PVC hoses, PE hoses, TPE hoses, PU hoses, silicone hoses, heat shrink tubing, etc. The machine has a built-in automatic prefeeder, you can load the whole roll into the machine and it can pre-feed the tube, it helps to maintain a constant feeding tension, with the belt feeding mechanism, it can achieve good feeding accuracy.


Color touch screen operation interface, all parameters are intuitive and easy to understand, just simply set the cutting length and quantity, the machine can work automatically. The cut-off knives use standard utility blades on the market, which can be easily purchased around the world, so the cost of use is very low.

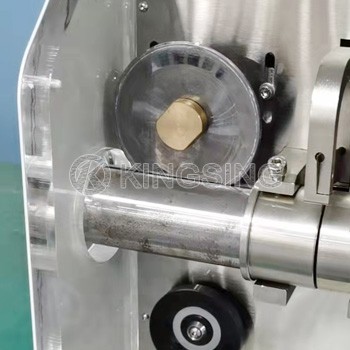

The optional longitudinal slitting function of the corrugated pipe can be selected, and the corrugated pipe is longitudinally cut while cutting to a fixed length, as shown in the figure.

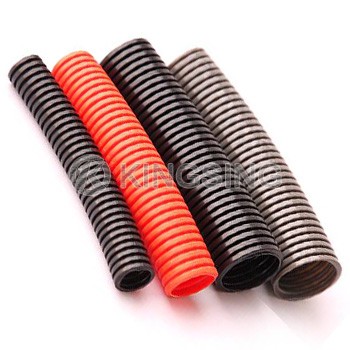

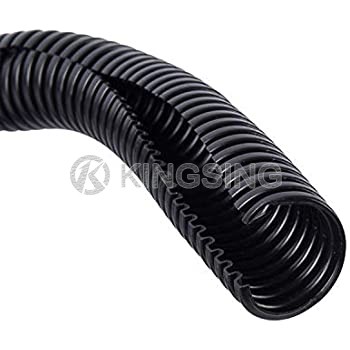

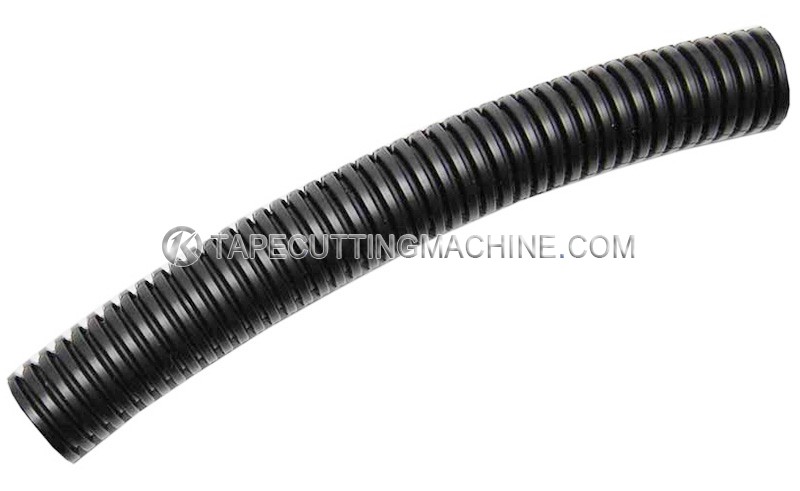

Normal Cutting EffectOptional Slitting UnitSlitting Effect

Download: (1)

Available Tube Diameter: 5~30mm (depends on material)

Cutting Length: Max.9999.9mm

Cutting Accuracy: ±Lx0.01mm(L=cutting length)

Speed: 3600pcs/hour(L=100mm)

Blade Type: Utility knife

Power Rating: 1100w

Operating Temperature: 0~40°C

Humidity: 10%~90%RH(non-condensing)

Power Supply: AC220V/50Hz Single Phase

Net Weight:370KG

Dimension(LxWxH): 1440x620x1452mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
